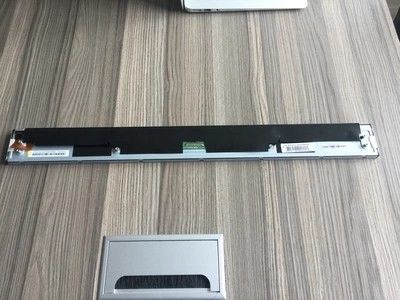

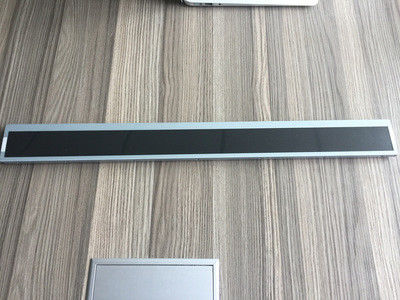

BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor

Brand Name:	BOE
Model Number:	DV210FBM-N00
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Bar Lcd Display

Resolution:

1920*132pixels

Brightness:

300CCD/M2

Connector:

40Pin

Working Life:

30k Hours

Contrast Ratio:

1200:1

Supply Ability:

3000pcs per week

Highlight:

stretched lcd monitor

,

stretch monitor display

Product Description

BOE lcd bar display 21" DV210FBM-N00 stretched monitor display 300CCD/M2 1920*132ixels for smart cabinet
BOE
Model
DV210FBM-N00

Diagonal Size
20.9 inch
Type
a-Si TFT-LCD, LCM

Pixel Format
1920(RGB)×132
Configuration
RGB Vertical Stripe

Active Area
529.416(H)×36.3974(V) mm

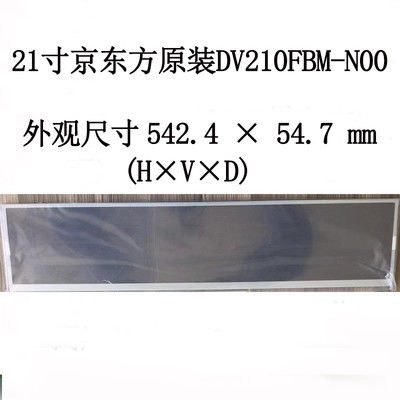

Outline Dim.
542.4(H)×54.7(V) mm

Bezel Area
-
Treatment
Antiglare (Haze 25%)

Luminance
300 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)

View Direction
Symmetry
Response Time
8 (Typ.)(G to G)

Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
HADS, Normally Black, Transmissive

Support Color
16.7M 73% (CIE1931)
Light Source
WLED , 30K hours , With LED Driver

Weight
500g (Typ.)
Designed For

Frame Rate
60Hz
Touch Panel
Without

Interface Type
40 pins LVDS (2 ch, 8-bit) , Connector

Power Supply
12.0V (Typ.)

Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

All our LCD LED screen monitor module panel products will be full test one by one before sending .
