BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector

Name: BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV370FBM-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV370FBM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*540pixels

Brightness:

700cd

Connector:

51pin

Contrast Ratio:

1000:1

Working Life:

50K Hours

Signal Interface:

LVDS

Input Voltage:

12V

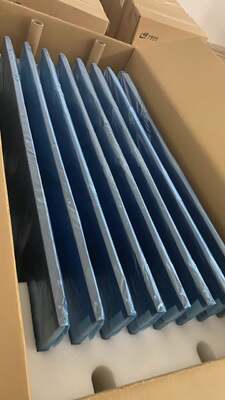

Packaging Details:

Industrial packing

Product Description

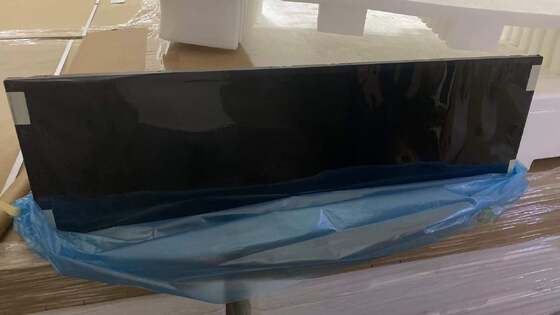

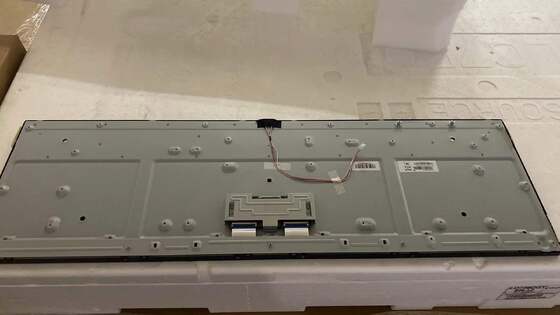

BOE 37-Inch Stretched LCD Display DV370FBM-N10

The DV370FBM-N10 is a 37-inch diagonal stretched bar LCD display panel from BOE Technology Group Co., Ltd., featuring 700 cd/m² outdoor high brightness, 1920*540 resolution, and 51-pin connector. This a-Si TFT-LCD panel includes an integral WLED backlight system and is designed for demanding outdoor and stretched display applications.

Key Features

37-inch stretched bar display format (>3:1 aspect ratio)
700 cd/m² high brightness for outdoor visibility
1920*540 pixel resolution
WLED backlight with 50,000-hour lifespan
Wide viewing angles: 89/89/89/89 (CR≥10)
1000:1 contrast ratio
ADS technology with normally black display mode
LVDS interface with 51-pin connector
Antiglare surface with hard coating (3H)

Technical Specifications

Manufacturer	BOE
Model	DV370FBM-N10
Display Size	37 inch (Native bar)
Resolution	1920(RGB)*540
Brightness	700 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	14 ms (Typical, G to G)
Display Colors	16.7M, 99% sRGB
Interface	LVDS (2 ch, 8-bit), 51 pins Connector
Power Consumption	25.8W (Typical)
Input Voltage	12.0V (Typical)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Panel Weight	5.10 kg (Maximum)

Applications

Digital Signage
Outdoor High Brightness Displays
Stretched Bar LCD Applications
Commercial Display Systems

Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents before integrating this model into your products.
