Large LCD Display Screen

Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen

All Category

Widescreen LCD Computer Monitors

Medical LCD Panel

Mr. pippo tian

pippo@ridafone.com

+86 13590447319

Contact Now

Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen

Brand Name:	BOE

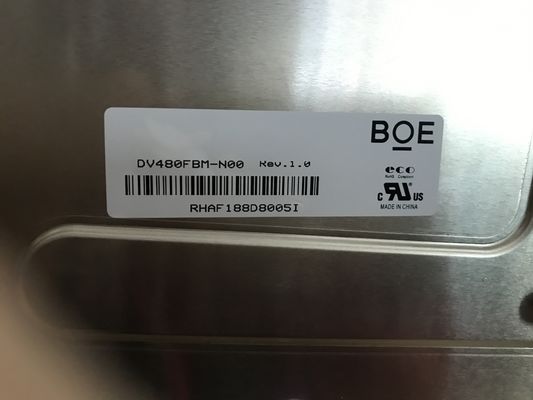

Model Number:	DV480FBM-N00
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Wide Screen High Resolution 1920*1080pixels

Resolution:

3840*720

Brightness:

1000CCD/M2

Connector:

Working Life:

50k Hours

Supply Ability:

3000pcs per week

Highlight:

large flat screen monitor

large display monitor

Product Description

BOE bar Screen module 48" DV480FBM-N00 high brightness 1000CCD/M2 HD 3840*720ixels for advisement player 16.7M colors

Manufacturer	BOE	Model Name	DV480FBM-N00
Screen Size	48 inch	Screen Type	LCM , a-Si TFT-LCD
Pixel Number	3840(RGB)×720	Arrangement	RGB Vertical Stripe
Active Area(mm)	1194.05 × 223.884 (H×V)	Outline(mm)	1217.9 × 248.2 × 30.58 (H×V×D)
Bezel Area(mm)	-	Treatment	Antiglare (Haze 1%), Hard coating (3H)
Luminance	1000 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Response	16 (Typ.)(Tr+Td) ms
Good View at	Symmetry	Work Mode	ADS, Normally Black, Transmissive
Color Depth	16.7M 72% (CIE1931)	Backlight	WLED , 50K hours , With LED Driver
Mass	3.7Kgs (Typ.)	Used for
Refresh Rate	60Hz	Touchscreen	Without
Signal Type	V-by-One 8 lane , Connector , 51 pins
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen 0

All our LCD LED screen monitor module panel products will be full test one by one before sending .
