| Brand Name: | Innolux |
| Model Number: | N070ICE-GB1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

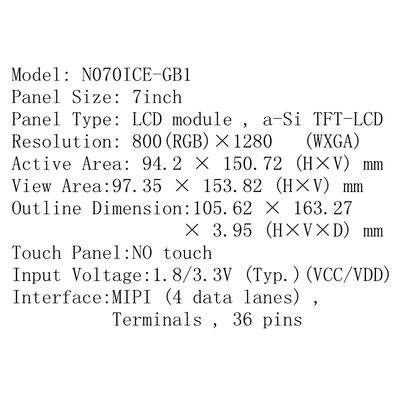

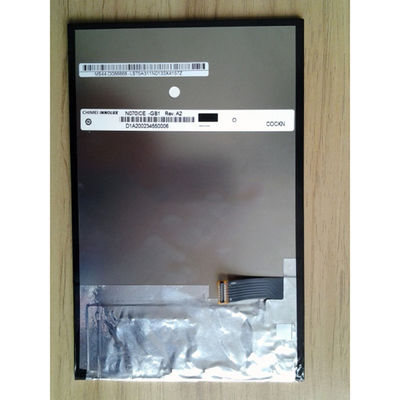

| Brand | Innolux | Model | N070ICE-GB1 |
|---|---|---|---|
| Diagonal Size | 7.0 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Format | 800(RGB)×1280 [WXGA] | Configuration | RGB Vertical Stripe |
| Active Area | 94.2(H)×150.72(V) mm | Outline Dim. | 105.62(H)×163.27(V) ×3.95(D) mm |
| Bezel Area | 97.35(H)×153.82(V) mm | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 61% (CIE1931) | Light Source | WLED [3S6P] , 12K hours , W/O Driver |
| Weight | 90.0g (Max.) | Designed For |
|
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | 36 pins MIPI (4 data lanes) , Connector | ||
| Power Supply | 1.8/3.3V (Typ.)(VCC/VDD) | ||
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
|
|
