Tianma 7inch Industrial LCD Display with 1200cd/m² Brightness and 800x480 Pixels Resolution TFT-LCD Panel

Name: Tianma 7inch Industrial LCD Display with 1200cd/m² Brightness and 800x480 Pixels Resolution TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM070RVHG04-01
Price: 43.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM070RVHG04-01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480pixels

Style:

50PIN IPS

Brightness:

1200CD/M2

Color:

262k

Contrast Ratio:

500 :1

Working Life:

40K Hours

Type:

Lcm

Size:

7inch

Lamp Type:

Lcm

Voltage:

3.3V

Model Numberer:

TM070RVHG04-01

Packaging Details:

Industrial packing

Highlight:

1200cd/m² brightness Industrial LCD Display

7inch size TFT-LCD Panel

800x480 pixels resolution LCM

Product Description

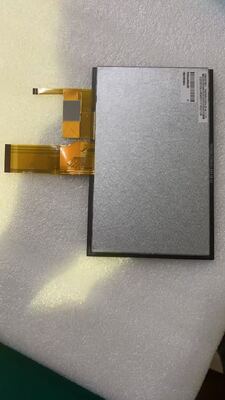

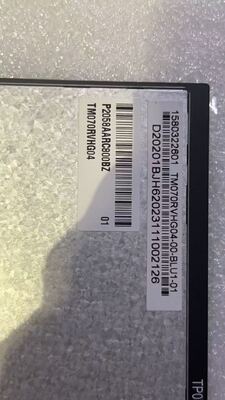

Tianma 7Inch Industrial LCD Display TM070RVHG04-01

Tianma Microelectronics Co., Ltd. TM070RVHG04-01 is a 7.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, featuring PCAP touchscreen technology. Designed for industrial and outdoor high-brightness applications, this display operates within -20°C to 70°C and stores within -30°C to 80°C temperature ranges.

Technical Specifications

Brand	TIANMA
Model	TM070RVHG04-01
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	800(RGB)×480, 16:9, WVGA
Pixel Format	RGB Vertical Stripe
Active Area	154.08(H)×85.92(V) mm
Physical Size	171.5(H)×110.3(V)×7.75(D) mm
Mass	208g (Typ.)
Luminance	1200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
View Direction	6 o'clock
Response Time	25 ms (Typ.)
Viewing Angle	80/80/60/80 (Typ.)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M, 50% NTSC
Light Source	6S5P WLED, 40K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	Parallel RGB (1 ch, 6/8-bit), 50 pins FPC
Power Supply	3.3/10.4/16.0/-7.0V (Typ.)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Note: Mass production began in Q3 2019 and this model is currently in production. For the latest production status and detailed specifications, please contact TIANMA or their authorized distributor. The information provided is for reference only and should not be used as the sole basis for decision-making.
