BOE 10.1inch Car LCD Display AV101HDT-A10-28PD with 1280*720 Resolution 60PIN IPS and 950 CD/M2 Brightness

BOE 10.1inch Car LCD Display AV101HDT-A10-28PD with 1280*720 Resolution 60PIN IPS and 950 CD/M2 Brightness

BOE 10.1inch Car LCD Display AV101HDT-A10-28PD with 1280*720 Resolution 60PIN IPS and 950 CD/M2 Brightness

Brand Name: BOE
Model Number: AV101HDT-A10-28PD
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1280*720
Style:
60PIN IPS
Brightness:
950 CD/M2
Color:
16.7M
Contrast Ratio:
1000 :1
Working Life:
50k Hours Without Driver

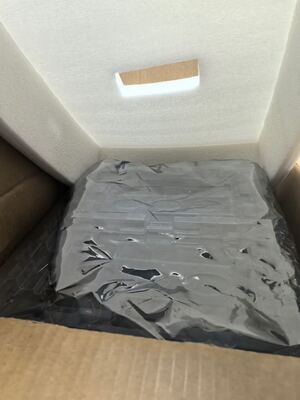

Packaging Details:
Industrial packing
Highlight:

1280*720 Resolution Car LCD Display

,

950 CD/M2 Brightness TFT-LCD Display

,

60PIN IPS LCD Panel

Product Description

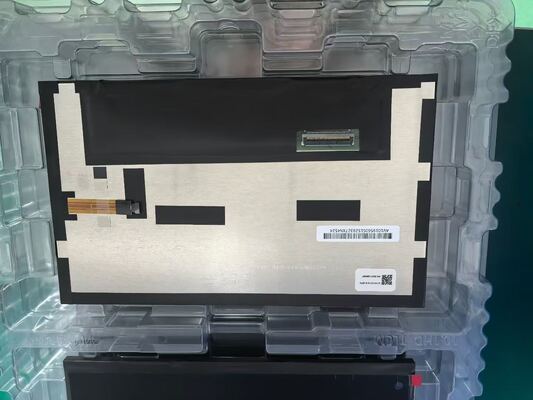

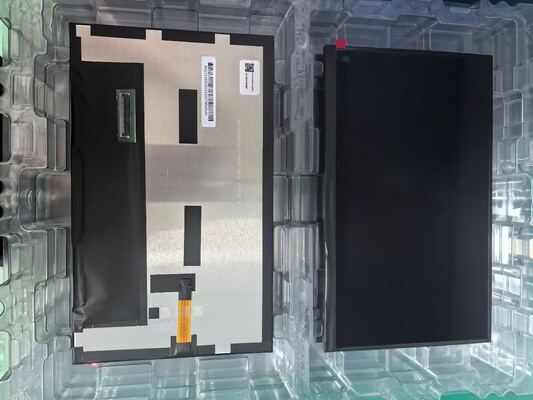

BOE 10.1-inch Car LCD Display AV101HDT-A10-28PD
High-brightness 10.1-inch automotive LCD display with 1280×720 resolution and 60-pin interface, designed for outdoor and automotive applications requiring superior visibility and reliability.
Product Overview
The BOE AV101HDT-A10 is a 10.1-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system and projected capacitive touchscreen. Engineered for demanding environments, it operates within a wide temperature range of -30°C to 85°C and is ideal for outdoor high-brightness applications and automotive displays.
BOE 10.1-inch Car LCD Display AV101HDT-A10-28PD
Key Features
  • 10.1-inch diagonal display with 1280×720 WXGA resolution
  • High brightness: 950 cd/m² typical
  • Wide operating temperature: -30°C to 85°C
  • Projected capacitive touchscreen (PCAP)
  • Anti-fingerprint + anti-glare hard coating (7H)
  • WLED backlight with 50,000-hour lifespan
  • 16.7 million colors, 80% NTSC color gamut
  • LVDS interface with 60-pin FPC connector
Technical Specifications
Manufacturer BOE
Model Number AV101HDT-A10
Screen Size 10.1 inch
Screen Type a-Si TFT-LCD Assembly
Resolution 1280(RGB)×720 (WXGA)
Active Area 223.68 × 125.82 mm (H×V)
Outline Dimensions 255.4 × 166.1 × 18.8 mm (H×V×D)
Weight 600g (Typical)
Luminance 950 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 80/80/80/80 (CR≥10)
Response Time 30ms max (Tr+Td)
Display Type ADS, Normally Black, Transmissive
Power Consumption 9.54W / 11.45W (Typical/Maximum)
Refresh Rate 60Hz
Touchscreen PCAP, I²C interface
Signal Interface LVDS (1 channel, 8-bit), 60-pin FPC
Voltage Supply 3.3V / 5.0V (VDD3/VDD5)
Important Note: Production status and specifications are subject to change. For integration into your products, we strongly recommend contacting BOE or their authorized distributors for the latest production and specification details.
