Hannstar 10.1 Inch Car LCD Display with 1280*720 Pixels 60Pin Connector and 600 cd/m² Brightness TFT LCD Screen Panel

Name: Hannstar 10.1 Inch Car LCD Display with 1280*720 Pixels 60Pin Connector and 600 cd/m² Brightness TFT LCD Screen Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HSD101IHW1-A10
Price: 30.00 USD
Availability: InStock

Brand Name:	Hannstar
Model Number:	HSD101IHW1-A10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*720pixels

Style:

WLED 40P

Brightness:

600 CCD M2

Color:

16.7M

Contrast Ratio:

900 :1

Working Life:

30K Hours

Connector:

60Pin

Packaging Details:

Industrial packing

Highlight:

lcd display screen

raspberry pi 7 touchscreen display

Product Description

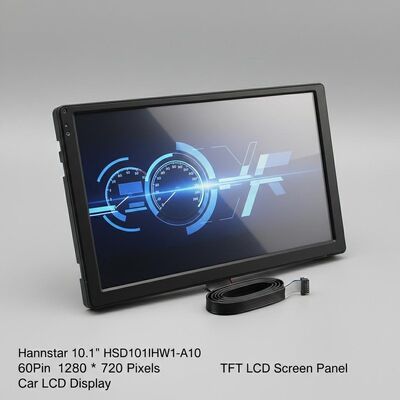

Hannstar 10.1" HSD101IHW1-A10 Car LCD Display

High-quality 10.1-inch TFT LCD screen panel designed specifically for automotive GPS display applications, featuring 1280*720 resolution and robust construction for demanding environments.

Technical Specifications

Panel Brand	HannStar
Panel Model	HSD101IHW1-A10
Panel Size	10.1 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB) * 720 (WXGA)
Pixel Format	RGB Vertical Stripe
Display Area	224.64(W) * 126.36(H) mm
Bezel Opening	227.64(W) * 129.36(H) mm
Outline Size	238.8(W) * 148(H) * 7.3(D) mm
Surface Treatment	Antiglare, Hard coating (3H)
Brightness	600 cd/m² (Typical)
Contrast Ratio	900:1 (Typical)
Viewing Angle	85/85/85/85 (Typical, CR ≥10)
Display Mode	HS-IPS, Normally Black, Transmissive
Best View	Symmetry
Response Time	30ms (Typical, Tr+Td)
Display Colors	262K/16.7M
Backlight System	6S5P WLED, 30K hours, Without Driver
Refresh Frequency	60Hz
Touch Screen	Without
Panel Weight	346g (Typical)
Signal Interface	LVDS (1 ch, 6/8-bit), 60 pins, FPC
Input Voltage	3.3/12.5/19/-10V (Typical)(VDD/AVDD/VGH/VGL)

Environmental Specifications

Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 85°C
Vibration Level	2.9G (28.4 m/s²)

Key Features

Wide operating temperature range for automotive applications
High brightness (600 cd/m²) for excellent visibility
3G vibration resistance for durability in vehicle environments
WLED backlight with 30,000-hour lifespan
Matte antiglare surface with hard coating (3H)
U/D, L/R reverse capability
6/8-bit color depth support

Application Diagram

Product Overview

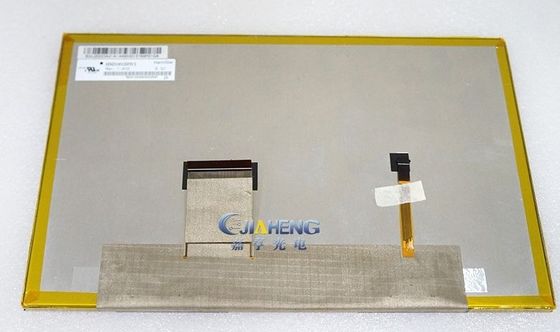

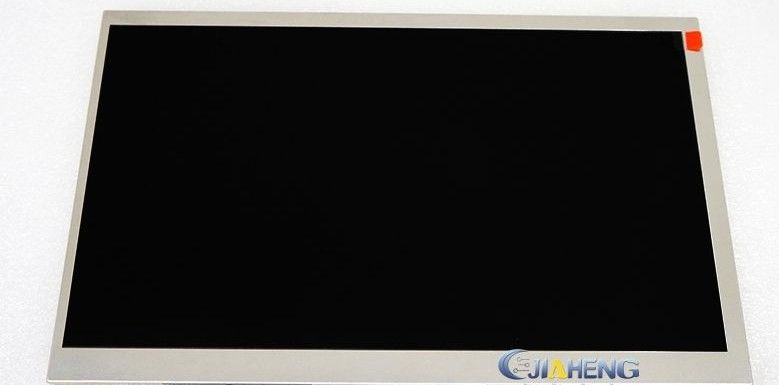

The HannStar HSD101IHW1-A10 is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, designed without backlight driver and touch screen. This model is specifically recommended for automotive display applications due to its robust environmental specifications and high-performance characteristics.

Production Status: Mass production began Q3 2016. This model is currently in production. Specification information was first recorded on February 22, 2017.

Important Notice: For the latest production status and detailed specifications, we strongly recommend contacting HannStar or their authorized distributors directly. The production status information provided here is for reference only and should not be used as the sole basis for decision-making.

Quality Assurance

All products undergo comprehensive individual inspection before shipment to ensure they meet the highest quality standards and performance specifications.
