8.4 Inch Industrial LCD Monitor with 800 cd/m² Brightness 800*600 Pixels Resolution and 20pin Connector

Name: 8.4 Inch Industrial LCD Monitor with 800 cd/m² Brightness 800*600 Pixels Resolution and 20pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL8060BC21-11F
Price: 43.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL8060BC21-11F
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

800ccd/m2

Resolution:

800*600pixels

Contrast Ratio:

800:1

Color:

262K

Working Life:

70k Hours

Connector:

20P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

800 cd/m² Brightness Industrial LCD Monitor

800*600 Pixels Resolution TFT-LCD Display Panel

20pin Connector LCM

Product Description

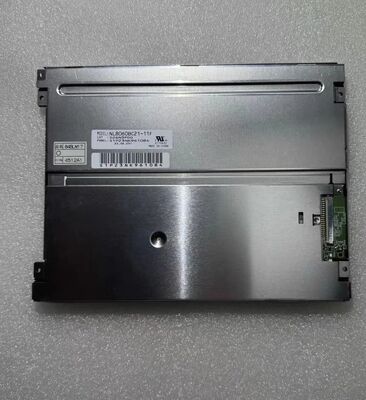

8.4 Inch Industrial LCD Monitor NL8060BC21-11F

8.4-inch diagonal industrial LCD monitor with 800×600 pixels resolution, 800 cd/m² brightness, and 20-pin LVDS interface.

The NL8060BC21-11F is an 8.4-inch diagonal a-Si TFT-LCD display panel from NEC LCD Technologies, Ltd., featuring an integral WLED backlight system without backlight driver or touch screen. This industrial-grade monitor operates in temperatures ranging from -30°C to 80°C and withstands vibrations up to 2.0G (19.6 m/s²).

Key Features

Wide operating temperature range (-30°C to 80°C)
High brightness: 800 cd/m² typical
Replaceable lamp with ≥70,000 hours lifespan
WLED backlight technology
180° reverse display capability
6/8-bit color depth with ColorXcell technology

Technical Specifications

Parameter	Specification
Brand	NEC
Model	NL8060BC21-11F
Diagonal Size	8.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	800(RGB)×600, 4:3, SVGA
Pixel Format	RGB Vertical Stripe
Active Area	170.4(H)×127.8(V) mm
Physical Size	200(H)×152(V)×8.7(D) mm
Mass	260/280g (Typ./Max.)
Surface Coating	Clear, Hard coating (3H)
Luminance	800 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
View Direction	6 o'clock
Response Time	3/15 (Typ.)(Tr/Td) ms
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M, 40% NTSC
Power Usage	5.0W (Typ.)
Light Source	4 strings WLED, 70K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -30 ~ 80°C, Storage Temperature -30 ~ 80°C, Vibration 2.0G (19.6 m/s²)

Application Recommendations

This model is specifically designed for industrial applications requiring robust performance in challenging environmental conditions.

Important Note: The production status information provided is for reference only. For integration into your products, we strongly recommend contacting NEC or their authorized agents for the latest production status and detailed specifications.
