Innolux 17Inch Industrial LCD Display with 1280x1024Pixels 250cd/m² Brightness and 30pin Connector DM170EGE-L20

Name: Innolux 17Inch Industrial LCD Display with 1280x1024Pixels 250cd/m² Brightness and 30pin Connector DM170EGE-L20
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M170EGE-L20
Price: 43.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	M170EGE-L20
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024Pixels

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Packaging Details:

Industrial packing

Highlight:

1280x1024Pixels Industrial LCD Display

250cd/m² Brightness TFT-LCD Panel

30pin Connector LCM

Product Description

Innolux 17-Inch Industrial LCD Display with 1280x1024 Pixels 30pin 250cd/m² Brightness DM170EGE-L20

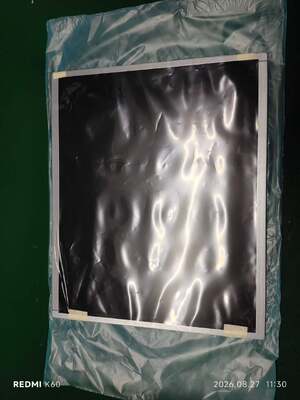

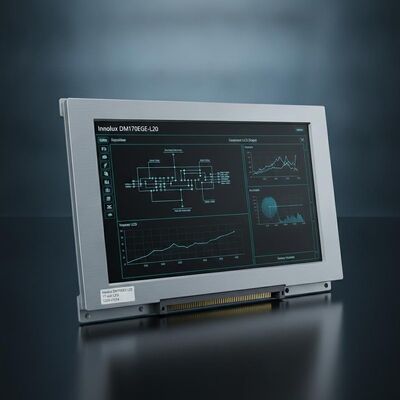

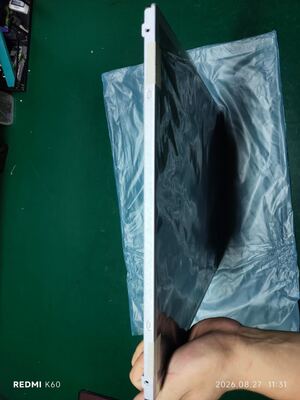

M170EGE-L20 is a 17.0" diagonal a-Si TFT-LCD display panel from Chimei Innolux Corporation, featuring an integral WLED backlight system without backlight driver or touch screen. This industrial-grade display operates within 0~50°C and stores within -20~60°C temperature ranges.

Key features include WLED backlight with ≥50K hours lifespan, upside interface, matte finish, and varying power consumption across revisions (C1: 15.61W, C2: 10.8W, C3/C4: 8.95W). This model is recommended for industrial applications.

Mass production began Q2 2011 with final shipments in Q4 2023. This model is now discontinued. For integration into future products, contact Chimei Innolux or their agent for the latest production and specification details.

Technical Specifications

Brand	Chimei Innolux
Model	M170EGE-L20
Diagonal Size	17.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1280(RGB)×1024, SXGA, 5:4
Pixel Format	RGB Vertical Stripe
Active Area	337.92(H)×270.336(V) mm
Physical Size	358.5(H)×296.5(V)×11(D) mm
Mass	1.40/1.50Kgs (Typ./Max.)
Surface Coating	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1/4 (Typ.)(Tr/Td) ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M, 72% NTSC
Power Usage	10.8W (Max.)
Light Source	12S4P WLED, 50K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature 0~50°C, Storage Temperature -20~60°C

The production status information is for reference only and should not be used as the basis for decision making. Always verify current specifications with the manufacturer.
