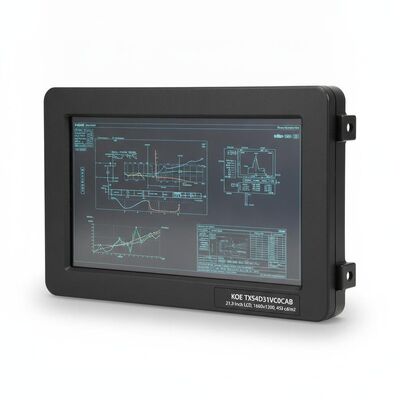

KOE 21.3 Inch Industrial LCD Display with 1600x1200 Pixels and 450cd/m2 Brightness TFT-LCD Display Panel

Name: KOE 21.3 Inch Industrial LCD Display with 1600x1200 Pixels and 450cd/m2 Brightness TFT-LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TX54D31VC0CAB
Price: 43.00 USD
Availability: InStock

Brand Name:	CMO
Model Number:	TX54D31VC0CAB
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Display Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 2560*2048

Brightness:

4500cd

Connector:

73pin

Contrast Ratio:

500:1

Working Time:

50K Hours

Packaging Details:

Industrial packing

Highlight:

21.3 inch Industrial LCD Display

1600x1200 Pixels TFT-LCD Display Panel

450cd/m2 Brightness LCM

Product Description

KOE 21.3 Inch Industrial LCD Display TX54D31VC0CAB

High-performance 21.3-inch industrial LCD display featuring 1600×1200 resolution and 450 cd/m² brightness. Designed for demanding industrial applications with robust construction and reliable performance.

Product Specifications

Manufacturer	KOE
Model Name	TX54D31VC0CAB
Display Size	21.3 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, 4:3, UXGA
Pixel Structure	RGB Vertical Stripe
Display Area	432(W)×324(H) mm
Panel Weight	2.700/3.00Kgs (Typ./Max.)
Outline Size	460.6(W)×362(H) mm
Surface	Antiglare
Brightness	450 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
View Direction	Symmetry
Response Time	15/10 (Typ.)(Tr/Td) ms
Display Colors	16.7M
Touch Screen	Without
Light Source	6 pcs CCFL
Interface	LVDS (2 ch, 8-bit)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Key Features

21.3-inch diagonal IPS TFT-LCD display
High resolution 1600×1200 UXGA format
450 cd/m² brightness for clear visibility
Wide 85/85/85/85 viewing angles
Antiglare surface treatment
Industrial operating temperature range
LVDS interface compatibility

Important Notice: This model is currently discontinued. Specifications provided are for reference only and may not reflect the latest production details. For integration into your products, please contact KOE or their authorized agents for current specifications and availability.
