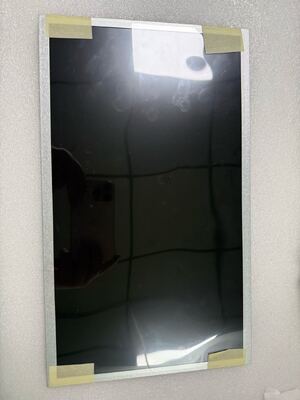

AUO 15.6Inch Industrial LCD Display 500cd/m2 1920x1080pixels 30PIN Healthcare TFT-LCD Panel

Name: AUO 15.6Inch Industrial LCD Display 500cd/m2 1920x1080pixels 30PIN Healthcare TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G156HAN02.3
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G156HAN02.3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

30PIN IPS

Brightness:

500CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

50K Hours

Type:

Lcm

Size:

15.6inch

Lamp Type:

WLED

Voltage:

5.0 V

Packaging Details:

Industrial packing

Product Description

AUO 15.6Inch Industrial LCD Display G156HAN02.3 1920x1080PIXELS 500cd/M2 30PIN Healthcare LCD Panel

Product Overview

G156HAN02.3 is a 15.6" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (AUO), featuring an integral WLED backlight system with LED driver and no touch screen. This industrial-grade display is designed for demanding applications with an operating temperature range of -10°C to 65°C and maximal vibration level of 1.5G (14.7 m/s²).

Key Features

sRGB color gamut with 99% coverage
WLED backlight with 50,000+ hour lifespan
Integrated LED driver
Reverse interface capability
Matte surface with anti-glare coating
Recommended for industrial and healthcare applications

Technical Specifications

Brand	AUO
Model	G156HAN02.3
Diagonal Size	15.6 inch
Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080 (FHD), 16:9 aspect ratio
Active Area	344.16(H)×193.59(V) mm
Physical Size	363.8(H)×215.9(V)×9.3(D) mm
Weight	600g (Typ.) / 660g (Max.)
Surface Coating	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Response Time	25 ms (Typ.)
Viewing Angle	89/89/89/89 (Typ.)
Operating Mode	AHVA, Normally Black, Transmissive
Color Support	16.7M colors, 99% sRGB
Power Consumption	12.5W (Typ.)
Light Source	WLED, 50K hours lifespan, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-10°C to 65°C
Storage Temperature	-10°C to 65°C

Important Note: Mass production began in Q4 2020 and this model is currently in production. We strongly recommend contacting AUO or their authorized agent for the latest production status and specification details before integrating this LCM into your product. The production status information provided is for reference only and should not be used as the sole basis for decision-making.
