Innolux 23.8Inch LCD Panel with 1920x1080 Pixels Resolution 1000cd/m² Brightness and 30pin Interface Industrial LCD Display

Name: Innolux 23.8Inch LCD Panel with 1920x1080 Pixels Resolution 1000cd/m² Brightness and 30pin Interface Industrial LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G238HCJ-LH1
Price: 43.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	G238HCJ-LH1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

WLED 40P

Brightness:

1000 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Product Description

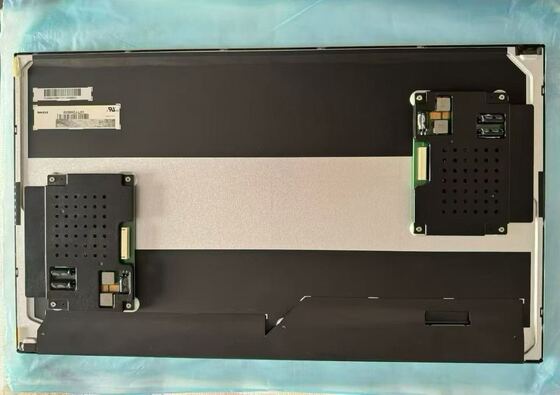

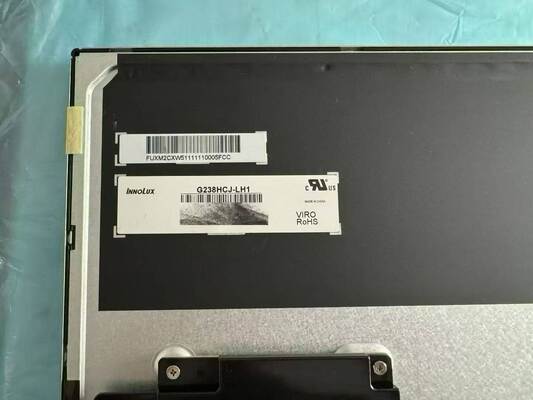

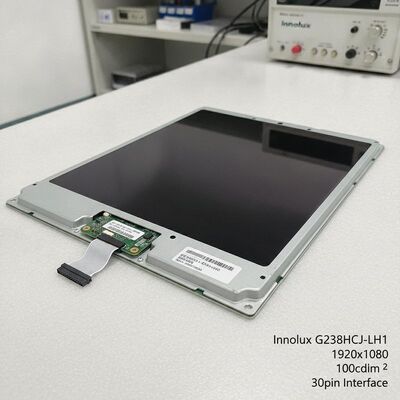

Innolux 23.8-Inch LCD Panel G238HCJ-LH1

Product Overview

The G238HCJ-LH1 is a 23.8-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring an integral WLED backlight system with LED driver. This industrial-grade display offers exceptional performance in demanding environments.

Key Features

Ultra high brightness: 1000 cd/m²
Wide operating temperature: -30°C to 80°C
WLED backlight with 50,000+ hours lifespan
Built-in LED driver
Reverse interface compatibility
Matte surface with anti-glare coating
Industrial-grade construction

Technical Specifications

Brand	Innolux
Model	G238HCJ-LH1
Diagonal Size	23.8 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1920×1080 (FHD), 16:9 aspect ratio
Pixel Structure	RGB Vertical Stripe
Active Area	527.04×296.46 mm
Physical Dimensions	543×317.4×19.43 mm
Weight	2.82 kg (Typical)
Surface Coating	Antiglare (Haze 25%), Hard coating (3H)
Brightness	1000 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	88/88/88/88 (CR≥10)
Response Time	14/11 ms (Typical, Tr/Td)
Operating Mode	AAS, Normally Black, Transmissive
Color Support	16.7M colors, 74% NTSC
Power Consumption	35W (Typical)
Light Source	WLED, 50K hours, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface	LVDS (2 ch, 8-bit), 30-pin Connector
Power Supply	5.0±0.5V
Operating Temperature	-30°C to 80°C
Storage Temperature	-40°C to 80°C

Environmental Specifications

Designed for industrial applications with robust environmental tolerance:

Operating Temperature: -30°C to 80°C
Storage Temperature: -40°C to 80°C
Maximal Vibration Level: 1.5G (14.7 m/s²)

Note: Mass production began in Q4 2022. For integration into your products, we strongly recommend contacting Innolux or their authorized agents for the latest production status and detailed specifications. Product status information is for reference only and should not be used as the sole basis for decision-making.
