AUO 27Inch Industrial LCD Display Panel with 800 cd/m² Brightness 3840x2160 Pixels and 51 Pin Connector

Name: AUO 27Inch Industrial LCD Display Panel with 800 cd/m² Brightness 3840x2160 Pixels and 51 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G270ZAN01.1
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G270ZAN01.1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	Western Union,MoneyGram,T/T
Supply Ability:	20000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,ROSH,UL,REACH

Material:

Glass

Size:

27inch

Constraction:

800:1

Pixels:

3840*2160

Contactor:

51pin

Working Life:

30k Hours

Display Colors:

16.7M

Weight:

2.39kg

Packaging Details:

industrial package

Product Description

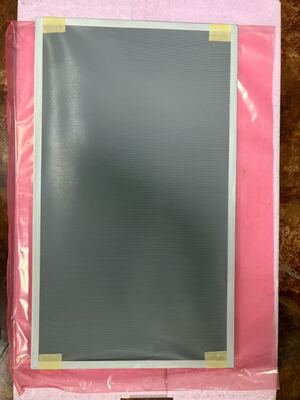

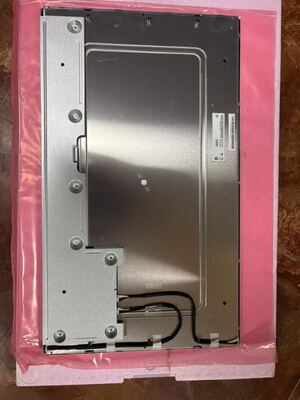

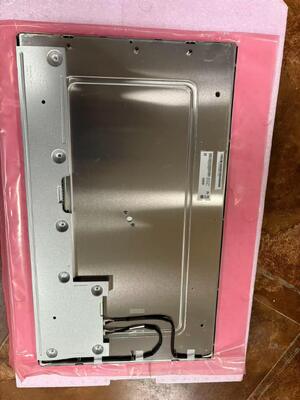

AUO 27-Inch Industrial LCD Display Panel G270ZAN01.1

G270ZAN01.1 is a 27.0" diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral WLED backlight system with LED driver (without touch screen). This industrial-grade panel operates in temperatures from 0°C to 50°C and withstands storage temperatures from -20°C to 60°C, with maximum vibration tolerance of 1.5G (14.7 m/s²).

Key Features

Wide Color Gamut (DCI-P3, sRGB)
High Brightness: 800 cd/m²
WLED Backlight with ≥50K hours lifespan
10-bit color depth with 1.07B colors
Matte anti-glare surface
Reverse interface technology

Technical Specifications

Manufacturer	AUO
Model Name	G270ZAN01.1
Display Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160 (UHD), 16:9 aspect ratio
Display Area	596.16 × 335.34 mm
Brightness	800 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	16/25 ms (Typical/Maximum)
Display Colors	1.07 billion colors, 94% NTSC
Power Consumption	61.96W (Typical)
Light Source	WLED, 50K hours lifespan, with LED Driver
Interface	V-by-One 8 lanes, 51-pin Connector
Input Voltage	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Panel Weight	3.40 kg (Typical)
Outline Dimensions	630 × 368.2 × 23.4 mm

Recommended Applications

Industrial equipment
Medical imaging systems
Outdoor high-brightness displays

Mass production began in Q1 2018 and this model is currently in production. For integration into your products, we strongly recommend contacting AUO or their authorized agents for the latest production status and detailed specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
