BOE 15Inch Industrial LCD Display TFT-LCD Panel with 1024x768Pixels Resolution and 350 CD/M2 Brightness

Name: BOE 15Inch Industrial LCD Display TFT-LCD Panel with 1024x768Pixels Resolution and 350 CD/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV150X0M-N10
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV150X0M-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*768pixels

Style:

WLED 20P

Brightness:

350 CCD M2

Color:

262K

Contrast Ratio:

1000 :1

Working Life:

50K Hours

Screen Size:

15inch

Packaging Details:

Industrial packing

Product Description

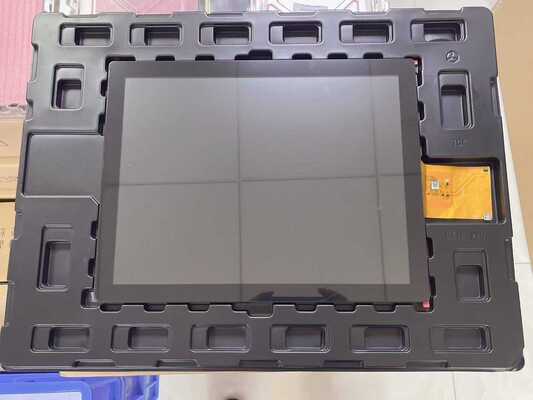

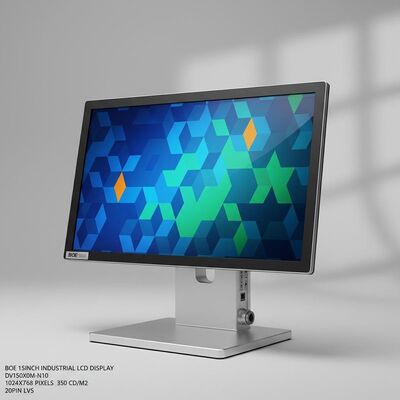

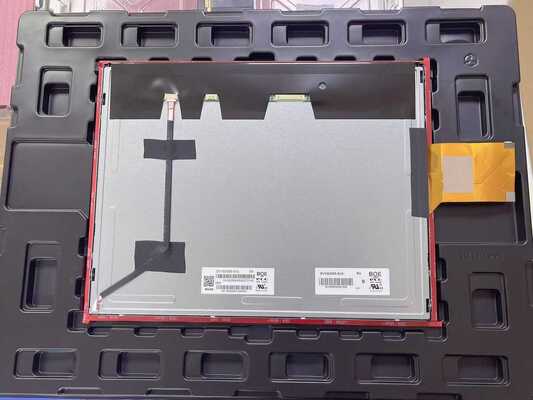

BOE 15-Inch Industrial LCD Display DV150X0M-N10

BOE 15-Inch Industrial LCD Display DV150X0M-N10 1024x768 Pixels 350 CD/M² 20PIN LVDS for Digital Signage Use

The DV150X0M-N10 is a 15.0-inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system with LED driver and no touch screen. It operates within a temperature range of -20°C to 70°C and can withstand vibration levels up to 1.2G (11.76 m/s²). Key features include landscape/portrait orientation, WLED backlight with ≥50,000 hours lifespan, built-in LED driver, upside interface, matte finish, and 7×24 hours continuous operation support. This model is recommended for industrial applications and digital signage systems.

Mass production began in Q2 2020, and the model remains in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. The production status information provided is for reference only and should not be used as the sole basis for decision-making.

Product Specifications

Brand	BOE	Model	DV150X0M-N10 1 Compatible
Diagonal Size	15.0 inch	Type	a-Si TFT-LCD, LCM
Pixel Number	1024(RGB)×768, 4:3, XGA	Pixel Format	RGB Vertical Stripe
Active Area	304.128(H)×228.096(V) mm	Physical Size	326.5(H)×253.5(V)×10(D) mm
Mass	930g	Surface Coating	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	30 (Typ.)(Tr+Td) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC	Designed For	Industrial, Digital Signage
Power Usage	10.8/13.2W (Typ./Max.)	Light Source	12S4P WLED, 50K hrs, With LED Driver
Frame Rate	60Hz	Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -20°C to 70°C, Storage Temperature -20°C to 70°C

Key Features

15.0-inch industrial-grade TFT-LCD display
1024×768 XGA resolution with 4:3 aspect ratio
High brightness 350 cd/m² for clear visibility
WLED backlight with 50,000 hours lifespan
Built-in LED driver for simplified integration
Wide operating temperature range (-20°C to 70°C)
LVDS interface with 20-pin connector
Anti-glare surface with hard coating (3H)
Supports 7×24 hours continuous operation
Landscape and portrait orientation support

Important Note: For the most current production status and detailed specifications, please contact BOE or their authorized agents directly. Product information is subject to change without notice.
