IVO 10.1 inch Car LCD Display with 1024*600 Pixels 800 CD/M2 Brightness and 40PIN IPS for Automotive Applications

Brand Name:	TIANMA
Model Number:	TM101DDHG01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*600

Style:

40PIN IPS

Brightness:

800 CD/M2

Color:

16.7M

Contrast Ratio:

600 :1

Working Life:

30k Hours Without Driver

Packaging Details:

Industrial packing

Product Description

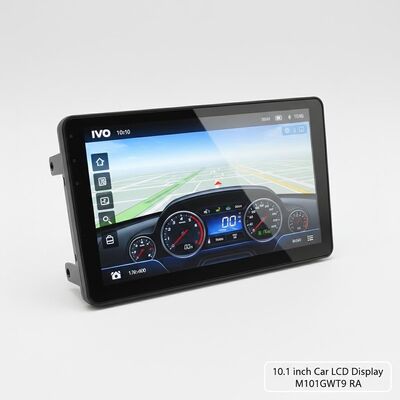

IVO 10.1 inch Car LCD Display M101GWT9 RA

High-brightness 10.1-inch automotive TFT-LCD display with 1024×600 resolution, designed for outdoor and automotive applications with wide temperature operation and vibration resistance.

Product Overview

InfoVision Optoelectronics Kunshan Co., Ltd. (IVO) M101GWT9 RA is a 10.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This model features wide operating temperature range (-30°C to 85°C), high vibration resistance (2.9G), and outdoor high brightness capabilities. Recommended for automotive displays and outdoor high-brightness applications.

Key Specifications

Brand: IVO

Model: M101GWT9 RA

Diagonal Size: 10.1 inch

Display Type: a-Si TFT-LCD, LCM

Resolution: 1024(RGB)×600 (WSVGA)

Pixel Structure: RGB Vertical Stripe

Active Area: 222.72 × 125.28 mm

Physical Size: 238.6 × 148.05 × 10.8 mm

Weight: 330g (Max.)

Surface Coating: Antiglare

Brightness: 800 cd/m² (Typ.)

Contrast Ratio: 600:1 (Typ.)

View Direction: 12 o'clock

Response Time: 25 ms (Typ.)

Viewing Angle: 70/70/70/50 (CR≥10)

Operating Mode: TN, Normally White, Transmissive

Color Support: 16.7M, 50% NTSC

Power Consumption: 8.14W (Typ.)

Backlight: 9S3P WLED, 30K hrs

Frame Rate: 60Hz

Touch Panel: Without

Interface & Power

Interface Type	LVDS (1 ch, 8-bit), 40 pins FPC
Power Supply	3.3/3.3V (Typ.)(VDD/VDDA)

Environmental Specifications

Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C
Vibration Resistance	2.9G (28.4 m/s²)

Application Notes

This display model entered mass production in Q4 2019 and is currently in production. For the latest production status and detailed specifications, please contact IVO or their authorized distributors directly.
