Mitsubishi 6.5inch Industrial LCD Display TFT-LCD Panel with 1300cd/m2 Brightness and 640X480 Pixels Resolution

Name: Mitsubishi 6.5inch Industrial LCD Display TFT-LCD Panel with 1300cd/m2 Brightness and 640X480 Pixels Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AA065VD11
Price: 43.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AA065VD11
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

640*480pixels

Style:

31PIN IPS

Brightness:

1300CD/M2

Color:

16.7m

Contrast Ratio:

600 :1

Working Life:

50K Hours

Type:

Lcm

Size:

6.5inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Product Description

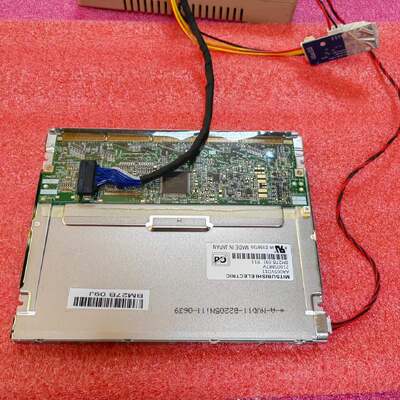

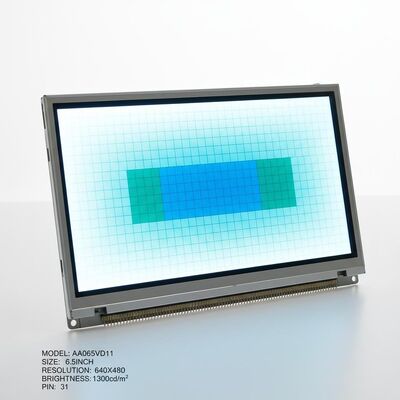

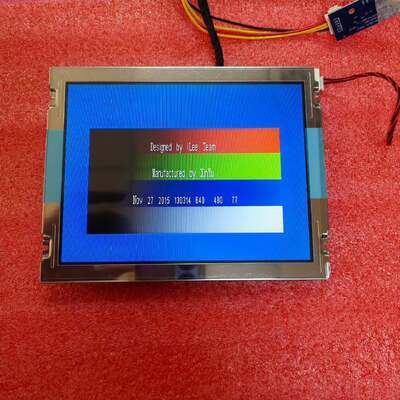

Mitsubishi 6.5inch Industrial LCD Display AA065VD11 TFT-LCD Panel

The AA065VD11 (Alias: T-55465D065J-LW-A-ACN) is a 6.5 inch diagonal a-Si TFT-LCD display panel from Mitsubishi Electric Corporation featuring an integral WLED backlight system. This industrial-grade panel operates in temperatures from -30°C to 80°C and withstands vibration levels up to 1.0G (9.8 m/s²).

Note: This model is discontinued. Mass production began Q1 2012 with last shipment Q2 2022.

Key Specifications

Brand Mitsubishi

Model AA065VD11

Diagonal Size 6.5 inch

Type a-Si TFT-LCD, LCM

Resolution 640 × 480 pixels (VGA)

Brightness 1300 cd/m²

Contrast Ratio 600:1

View Direction 6 o'clock

Response Time 6/19 ms (Tr/Td)

Viewing Angle 80/80/80/60 (CR≥10)

Operating Mode TN, Normally White

Color Support 262K, 40% NTSC

Power Consumption 3.8W

Light Source 2 strings WLED, 100K hrs

Interface CMOS (1 ch, 6-bit), 31 pins

Power Supply 3.3V

Touch Panel Without

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

Physical Dimensions 154 × 121 × 11.5 mm

Active Area 132.48 × 99.36 mm

Weight 185g

Surface Coating Antiglare, Hard coating (3H)

Important: This model is recommended for industrial and outdoor high-brightness applications. For integration into future products, contact Mitsubishi or their agent for the latest production and specification details. Information on einklcd.com is for reference only.
