BOE 43Inch Stretched LCD Display DV430FHM-NN1 with 400cd/m2 Brightness 1920*1080Pixels Resolution and 51pin Connector

Name: BOE 43Inch Stretched LCD Display DV430FHM-NN1 with 400cd/m2 Brightness 1920*1080Pixels Resolution and 51pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV430FHM-NN1
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV430FHM-NN1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080pixels

Brightness:

400cd

Connector:

50pin

Contrast Ratio:

1200:1

Working Life:

30K Hours

Signal Interface:

LVDS

Input Voltage:

12V

Packaging Details:

Industrial packing

Product Description

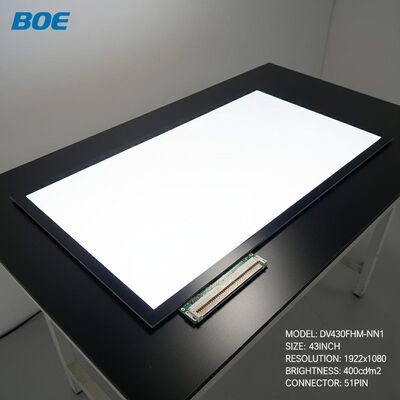

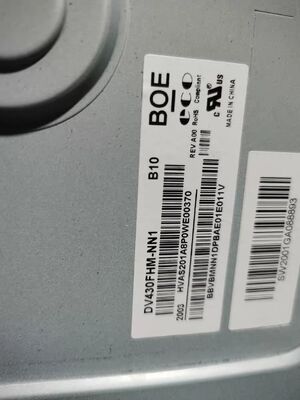

BOE 43-Inch Stretched LCD Display DV430FHM-NN1

Product Overview

The DV430FHM-NN1 is a 43-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system with LED driver. This stretched LCD display offers 400 cd/m² brightness and 1920×1080 resolution with 51-pin connectivity.

Key Features

43-inch stretched LCD display with 1920×1080 FHD resolution
400 cd/m² brightness with 1200:1 contrast ratio
WLED backlight system with LED driver
LVDS interface (2 ch, 8-bit) with 51-pin connector
Antiglare treatment with hard coating (3H)
Wide viewing angle: 89/89/89/89 (CR≥10)
Operating temperature: 0°C to 50°C
Ideal for digital signage applications

Technical Specifications

Specification	Details
Brand	BOE
Model P/N	DV430FHM-NN1
Diagonal Size	43"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD (51 PPI)
Active Area	940.896(W)×529.254(H) mm
Outline Dimensions	961.7(H)×550.1(V)×27.7(D) mm
Luminance	400 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Response Time	8 ms (Typical, G to G)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	16.7M colors, 72% NTSC
Light Source	WLED, 30K hours, With LED Driver
Weight	8.36 kg (Typical)
Interface Type	LVDS (2 ch, 8-bit), 51-pin Connector
Power Supply	12.0V (Typical)
Frame Rate	60Hz
Touch Panel	Without

Environmental Specifications

Parameter	Range
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Important Note: The production status information provided is for reference only and should not be used as the sole basis for decision-making. For the latest production and specification details, please contact BOE or their authorized agents directly.
