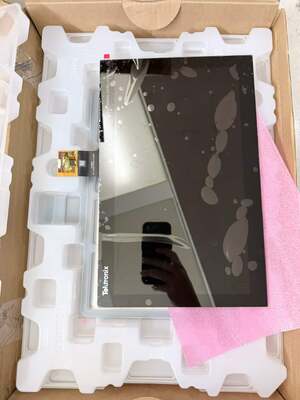

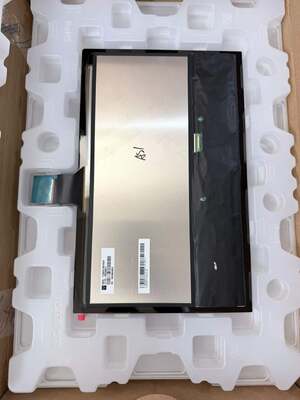

TIANMA 10.1Inch Industrial LCD Display Panel with 450cd/m2 Brightness and 1024x600 Pixels WSVGA Resolution

TIANMA 10.1Inch Industrial LCD Display Panel with 450cd/m2 Brightness and 1024x600 Pixels WSVGA Resolution

TIANMA 10.1Inch Industrial LCD Display Panel with 450cd/m2 Brightness and 1024x600 Pixels WSVGA Resolution

Brand Name: TIANMA
Model Number: TM101DDHG01-72
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1024*600pixels
Style:
40PIN IPS
Brightness:
450CD/M2
Color:
16.7M
Contrast Ratio:
800 :1
Working Life:
30K Hours
Packaging Details:
Industrial packing
Highlight:

10.1Inch Industrial LCD Display

,

450cd/m2 Brightness LCD Display Panel

,

1024x600 Pixels WSVGA Resolution TFT-LCD Display

Product Description

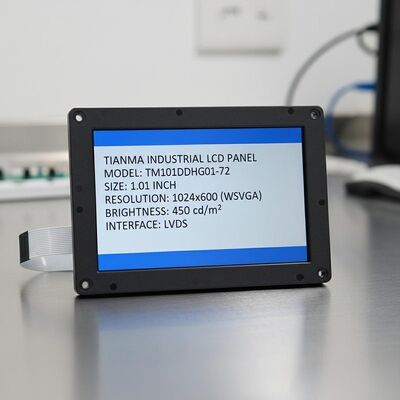

TIANMA 10.1-Inch Industrial LCD Display Panel TM101DDHG01-72
High-performance 10.1-inch industrial LCD display panel featuring 450 cd/m² brightness and 1024*600 WSVGA resolution, designed for demanding industrial and automotive applications.
TIANMA 10.1Inch Industrial LCD Display Panel with 450cd/m2 Brightness and 1024x600 Pixels WSVGA Resolution 0
The TM101DDHG01-72 is a 10.1-inch diagonal a-Si TFT-LCD display panel from Tianma Microelectronics Co., Ltd., featuring an integrated WLED backlight system with LED driver. This industrial-grade panel operates within a temperature range of -20°C to 70°C and withstands vibration levels up to 1.5G (14.7 m/s²).
Key Features
  • WLED backlight with integrated LED driver
  • U/D, L/R reverse capability
  • 6/8-bit interface support
  • Matte anti-glare treatment
  • Wide operating temperature range: -20°C to 70°C
  • High brightness: 450 cd/m²
  • 800:1 contrast ratio
Technical Specifications
Brand TIANMA
Model P/N TM101DDHG01-72
Diagonal Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)*600, WSVGA (117 PPI)
Active Area 222.72(W)*125.28(H) mm
Outline Dimensions 235*143*5.4 mm (H*V*D)
Luminance 450 cd/m² (Typical)
Contrast Ratio 800:1 (Typical)
Viewing Angle 80/80/75/80 (Typical, CR≥10)
Response Time 16 ms (Typical, Tr+Td)
Color Depth 262K/16.7M (47% NTSC)
Backlight WLED, 30K hours, With LED Driver
Signal Type LVDS (1 ch, 6/8-bit), Connector 40 pins
Operating Voltage 3.3V (Typical)
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Weight 202g (Typical)
Recommended Applications
Industrial equipment, automotive displays, and other demanding environments requiring reliable performance under extreme conditions.
This model entered mass production in Q4 2021 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting TIANMA or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
Tags:

industrial panel pc touch screen

industrial computer monitor

industrial touch screen display

Related Products

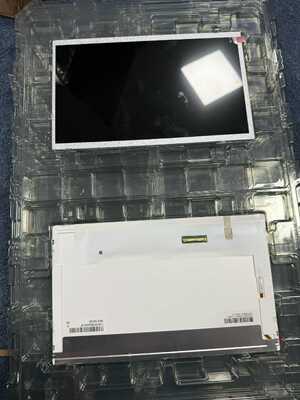

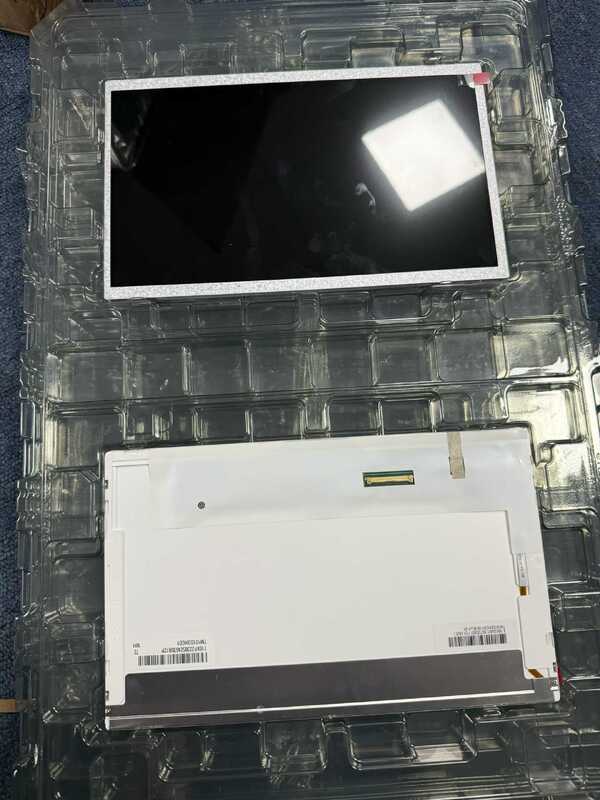

BOE0679 Industrial Touch Screen Monitor 15.6 Inch 1920x1080 Pixels 500cd/m2 Brightness EV156FHM-N10
