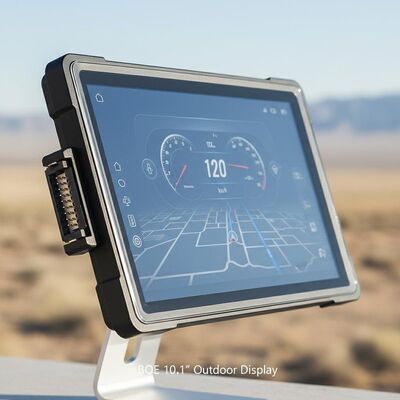

BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications

Name: BOE 10.1inch Car LCD Display with 1000 cd/m² Brightness 1280*720 Pixels and 60pin Connector for Outdoor Applications
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV101HDM-N10-28P2
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV101HDM-N10-28P2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*720pixels

Style:

LCM

Brightness:

1000 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

50K Hours

Connector:

60pin

Packaging Details:

Industrial packing

Highlight:

1000 cd/m² Brightness Car LCD Display

1280*720 Pixels TFT-LCD Display

60pin Connector LCM Display

Product Description

BOE 10.1-inch Car LCD Display

High-brightness 1280*720 pixel automotive display with 1000 cd/m² brightness and 60-pin connector, designed for outdoor high-brightness applications.

Product Overview

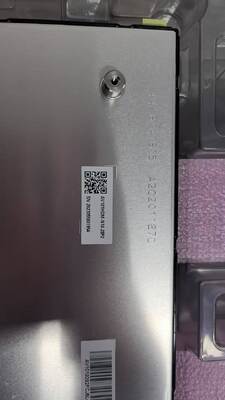

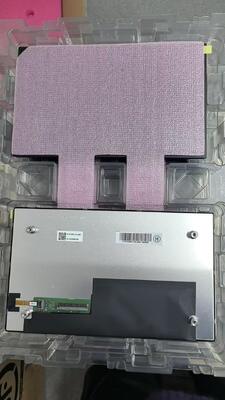

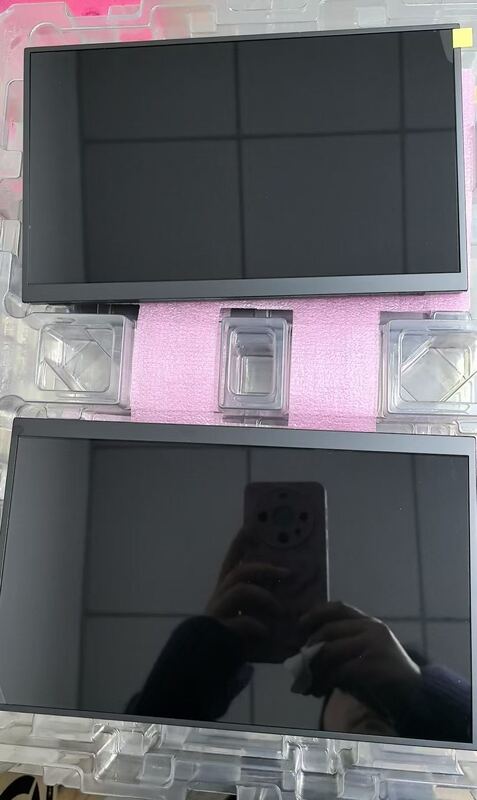

The AV101HDM-N10-28P2 is a 10.1-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system. This display operates within a wide temperature range of -30°C to 85°C and is engineered for demanding automotive and outdoor environments.

Key Features

10.1-inch diagonal display with 1280*720 resolution
Ultra-high brightness: 1000 cd/m² typical
Wide operating temperature: -30°C to 85°C
WLED backlight with 50,000+ hour lifespan
LVDS interface with 60-pin connector
sRGB color gamut with 86% NTSC coverage
Designed for automotive and outdoor applications

Technical Specifications

Model Number	AV101HDM-N10-28P2
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*720 (WXGA), 145 PPI
Active Area	223.68*125.82 mm
Brightness	1000 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30 ms maximum (Tr+Td)
Interface	LVDS (1 channel, 8-bit), 60-pin connector
Power Supply	3.3V typical
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 90°C
Touch Panel	Without touch screen

Application Areas

This high-brightness display is specifically designed for outdoor high-brightness applications and automotive display systems where visibility in direct sunlight is critical.

Note: Production status and specifications are subject to change. Please contact BOE or their authorized agents for the latest production and specification details before integrating this display into your products.
