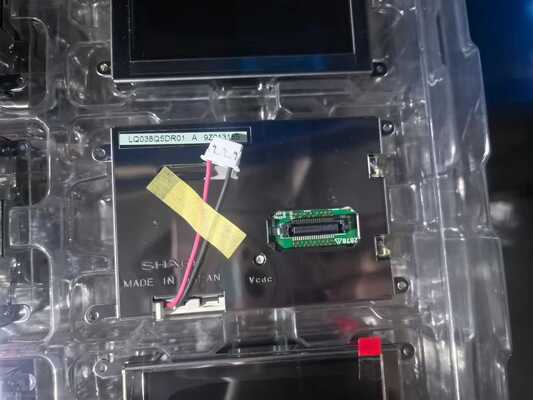

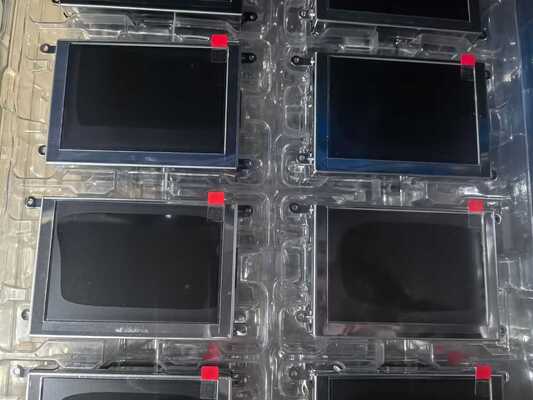

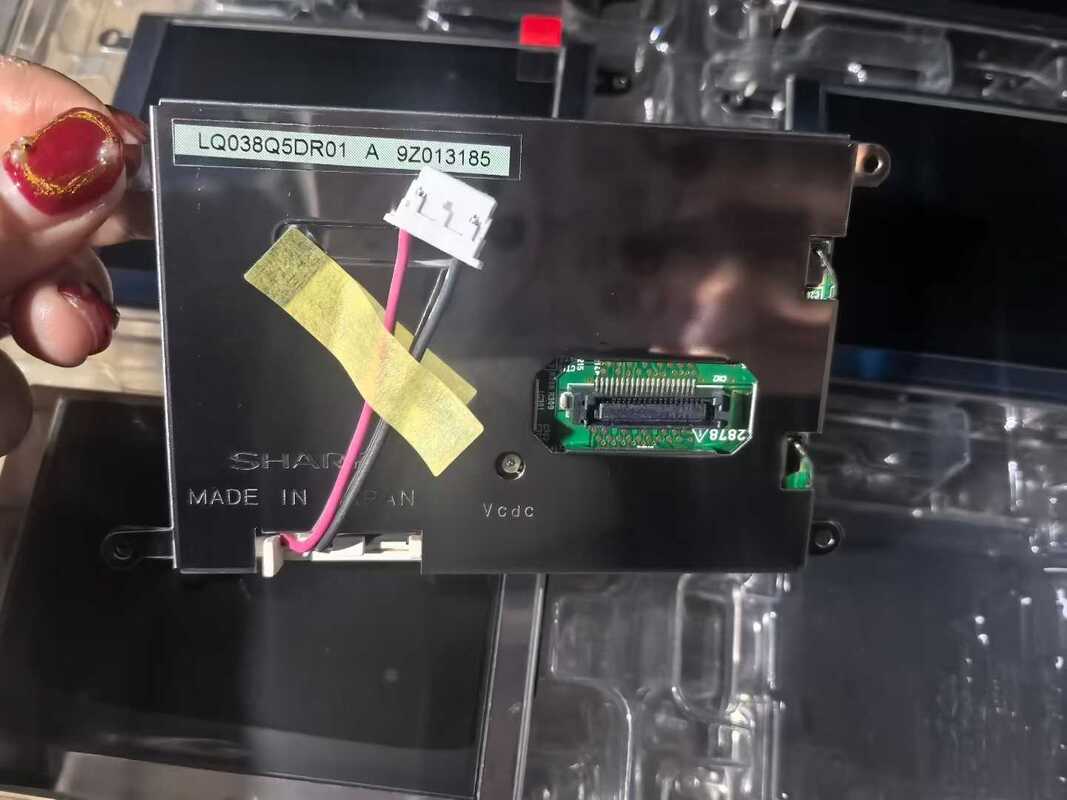

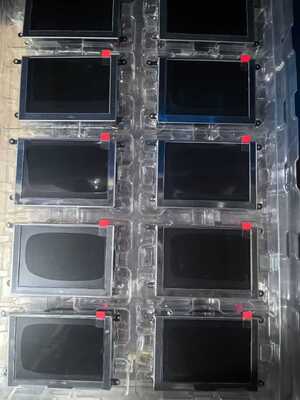

Sharp 3.8inch Automotive LCD Display with 320*240 Pixels Resolution and 450cd/m² Brightness LQ038Q5DR01

Name: Sharp 3.8inch Automotive LCD Display with 320*240 Pixels Resolution and 450cd/m² Brightness LQ038Q5DR01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ038Q5DR01
Price: 56 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ038Q5DR01
MOQ:	10pcs
Price:	$56
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	2000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

320*240pixels

Style:

LCD 40PIN

Brightness:

450CCD M2

Color:

262K

Contrast Ratio:

100 :1

Working Life:

20K Hours

Touch Panel:

Without Touch

Packaging Details:

Industrial packing

Highlight:

3.8inch Automotive LCD Display

320*240 Pixels Car LCD Panel

450cd/m² TFT-LCD Display

Product Description

Sharp 3.8-inch Automotive LCD Display

Model: LQ038Q5DR01 | 320*240 Pixels | 450 cd/m² | 40-pin Car LCD Panel

Product Overview

The Sharp LQ038Q5DR01 is a 3.8-inch diagonal a-Si TFT-LCD display panel designed specifically for automotive applications. This display features an integrated CCFL backlight system and is engineered to withstand harsh automotive environments with wide operating temperature ranges and vibration resistance.

Key Features

Wide operating temperature range (-30°C to 85°C)
3G vibration resistance (2.9G / 28.4 m/s²)
180° reverse viewing capability
Matte surface with antiglare and antireflection treatment
High brightness 450 cd/m² luminance
Automotive-grade reliability

Technical Specifications

Brand	Sharp
Model Number	LQ038Q5DR01 (Alias: LQ038Q5DR01T, LQ038Q5DR01A)
Diagonal Size	3.8 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)*240 (QVGA) - 106 PPI
Active Area	78.72(W) * 53.64(H) mm
Outline Dimensions	117.6 * 69.45 * 13.75 mm (HVD)
Luminance	450 cd/m² (Typical)
Contrast Ratio	100:1 (Minimum)
Viewing Angle	65/65/40/65 (Typical, CR≥5)
Response Time	30/50 ms (Typical, Tr/Td)
Optimal Viewing	6 o'clock direction
Color Depth	262K colors
Backlight	1 CCFL, 20K hours lifespan, No Driver
Weight	135g (Maximum)
Refresh Rate	60Hz
Touchscreen	Without touch screen
Signal Interface	Parallel RGB (1 channel, 6-bit), 40-pin connector
Operating Voltage	3.3V (Typical)

Environmental Specifications

Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C
Vibration Resistance	2.9G (28.4 m/s²)

Important Notice: This model entered mass production in Q2 2000 with last shipment in Q1 2013 and is now discontinued. We strongly recommend contacting Sharp or their authorized distributors for the latest production status and specifications before considering this model for new product designs.
