BOE 17.4 inch Car LCD Display with 800 cd/m² Brightness and 30pin Connector for Outdoor High Brightness Applications

Name: BOE 17.4 inch Car LCD Display with 800 cd/m² Brightness and 30pin Connector for Outdoor High Brightness Applications
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV174WUM-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV174WUM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1200*920pixels

Style:

LCM

Brightness:

800 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

20K Hours

Connector:

30pin

Packaging Details:

Industrial packing

Highlight:

17.4 inch Car LCD Display

800 cd/m² brightness LCD Panel

30pin connector TFT-LCD Display

Product Description

BOE 17.4" LCD Panel AV174WUM-N10

30-pin 16.7M Color Car LCD Display with outdoor high brightness screen

Product Overview

The AV174WUM-N10 (Alias: COG-VLBJT035-01) is a 17.4-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system with LED driver and no touch screen. This industrial-grade display operates in extreme temperatures from -40°C to 85°C and is designed for demanding applications including outdoor high brightness environments and automotive displays.

Key Features

17.4-inch WUXGA display with 1200*1920 resolution
High brightness: 800 cd/m² (Typical)
Wide operating temperature: -40°C to 85°C
16.7 million colors with 71% NTSC color gamut
LVDS interface with 30-pin connector
75Hz refresh rate for smooth performance
ADS technology with normally black display mode

Technical Specifications

Brand	BOE
Model P/N	AV174WUM-N10
Diagonal Size	17.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1200*1920 (RGB), WUXGA, 130PPI
Active Area	234(W) * 374.4(H) mm
Outline Size	250.8(W) * 386.8(H) * 19.1(D) mm
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ.) (CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Response Time	40ms (Max.) (Tr+Td)
Display Colors	16.7M, 71% NTSC
Lamp Type	12S6P WLED, With LED Driver
Frequency	75Hz
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 90°C

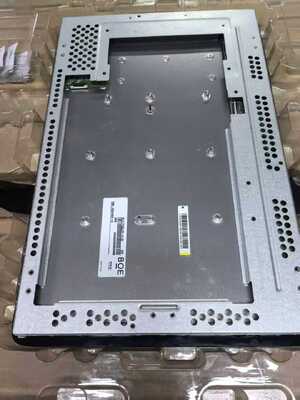

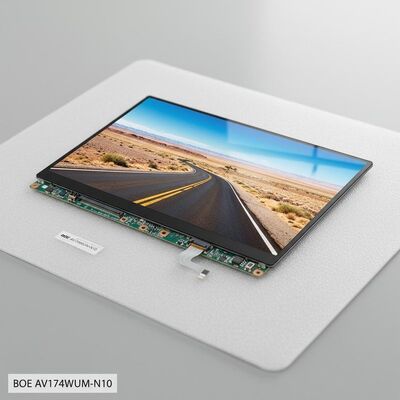

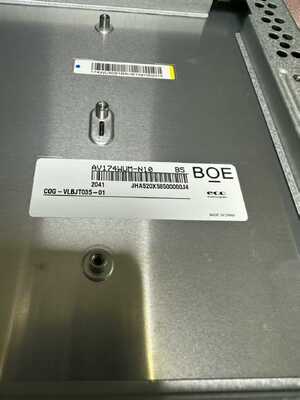

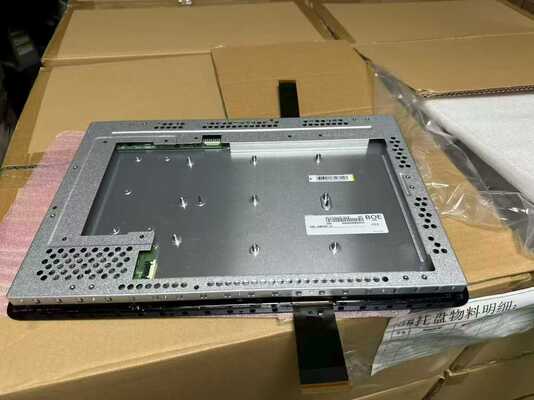

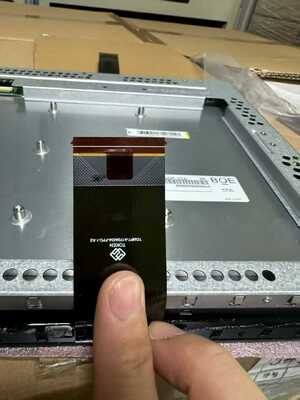

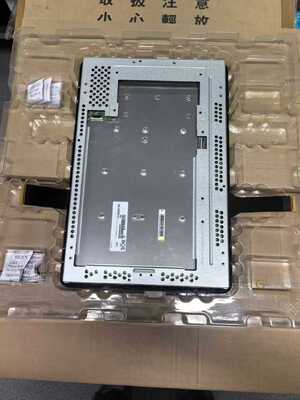

Product Images

Production Information

Mass production began in Q3 2020 and the model is currently in production. For the latest production status and specification details, we recommend contacting BOE or their authorized agents directly.
