Innolux 8Inch LCD Panel P080LDN-DB4 with 1200x1920 Pixels Resolution 290cd/m² Brightness and 44pin Interface for Tablet PC

Brand Name:	innolux
Model Number:	AT056TN52
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

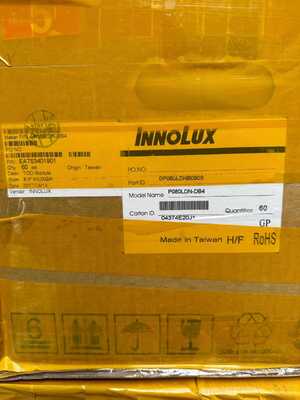

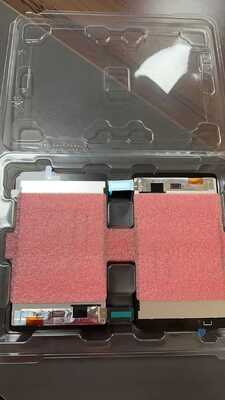

Original Industrial Packing

Resolution:

1200*1920pixels

Style:

WLED 60P

Brightness:

290 CCD M2

Color:

16.7M

Contrast Ratio:

900 :1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

1200x1920 Pixels LCD Panel

290cd/m² Brightness Industrial LCD Display

44pin Interface TFT-LCD Display

Product Description

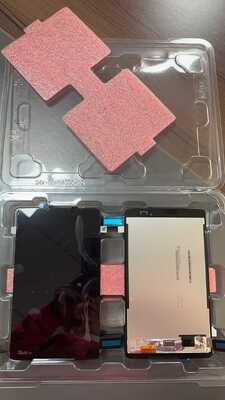

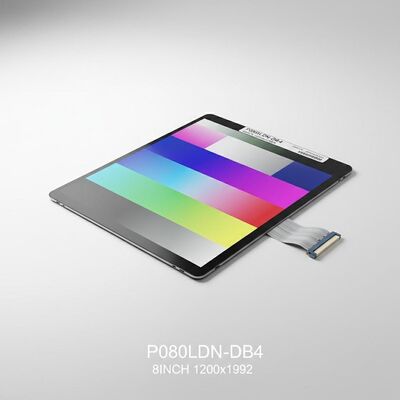

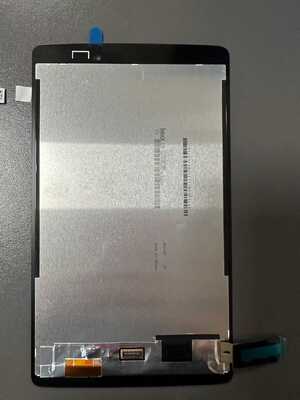

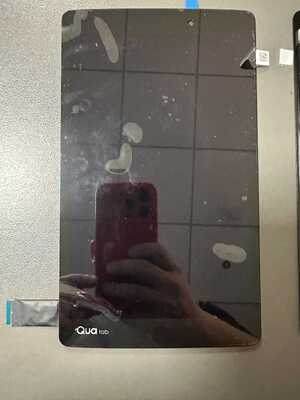

Innolux 8-Inch Tablet PC LCD Panel P080LDN-DB4

High-resolution 8-inch LCD display panel with 1200*1920 pixels, 290 cd/m² brightness, and 44-pin interface, designed for tablet PC and pad applications.

Product Overview

The P080LDN-DB4 is an 8.0-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring an integral WLED backlight system, On-Cell touch technology, and built-in NT51021 driver IC. This panel offers sRGB color gamut, portrait orientation, and is optimized for pad and tablet applications.

Key Features

8.0-inch WUXGA display with 1200(RGB)*1920 resolution
283 PPI pixel density for sharp image quality
290 cd/m² typical brightness
900:1 contrast ratio
On-Cell touch technology with I²C interface
16.7 million colors with 70% NTSC coverage
MIPI interface with 4 data lanes
44-pin connector
Symmetrical viewing angles

Technical Specifications

Brand	Innolux
Model P/N	P080LDN-DB4
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)*1920, WUXGA
Pixel Format	RGB Vertical Stripe
Active Area	107.64(W)*172.224(H) mm
Outline Dimensions	120.54 * 207.15 mm
Luminance	290 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response Time	25 ms (Typ.)(Tr+Td)
Color Depth	16.7M, 70% NTSC
Backlight	6S4P WLED, No Driver
Mass	130g (Max.)
Refresh Rate	60Hz
Touchscreen	On-Cell Touch, I²C
Signal Type	MIPI (4 data lanes), 44 pins Connector
Voltage Supply	1.8/3.3V (Typ.)(VDDIO/VDD)

Important Note: This model entered mass production in Q4 2016 and is now discontinued. For integration into future products, we strongly recommend contacting Innolux or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
