AUO 7inch Automotive LCD Display with 480×800pixels Resolution and 1000 cd/m² Brightness for High Visibility

Name: AUO 7inch Automotive LCD Display with 480×800pixels Resolution and 1000 cd/m² Brightness for High Visibility
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: C070VAN02.9
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	C070VAN02.9
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*800Pixels

Style:

50PIN IPS

Brightness:

100 CD/M2

Color:

16.7M

Contrast Ratio:

100 :1

Working Life:

10k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

7inch Automotive LCD Display

480×800pixels Car LCD Panel

1000 cd/m² TFT-LCD Display

Product Description

AUO 7-inch Automotive LCD Panel C070VAN02.9

AU Optronics C070VAN02.9 is a 7.0-inch diagonal a-Si TFT-LCD display panel designed for automotive applications, featuring an integral WLED backlight system with ultra-high brightness and wide temperature operation.

Key Features

7.0-inch diagonal display with 480×800 WVGA resolution
133 PPI pixel density for sharp image quality
Ultra-high brightness: 1000 cd/m² typical
Wide operating temperature: -30°C to 85°C
High vibration resistance: 2.9G (28.4 m/s²)
sRGB color gamut supporting 16.7 million colors
Matte anti-glare surface treatment
Designed for automotive and outdoor high-brightness applications

Technical Specifications

Model Number: C070VAN02.9

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800×480 (WVGA)

Active Area: 152.4×91.44 mm

Outline Dimensions: 167.3×109.2×9.35 mm

Luminance: 1000 cd/m² (Typical)

Contrast Ratio: 1000:1 (Typical)

Viewing Angle: 80/80/80/80 (CR≥10)

Response Time: 11/9 ms (Tr/Td)

Interface: Parallel RGB, 50-pin FPC

Power Supply: 3.3V (Typical)

Operating Temp: -30°C to 85°C

Storage Temp: -40°C to 95°C

Weight: 166±10g

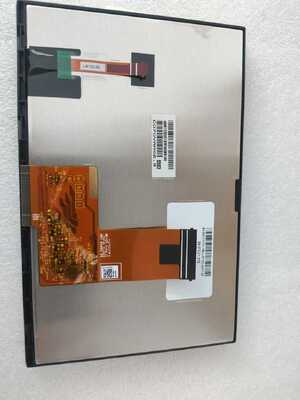

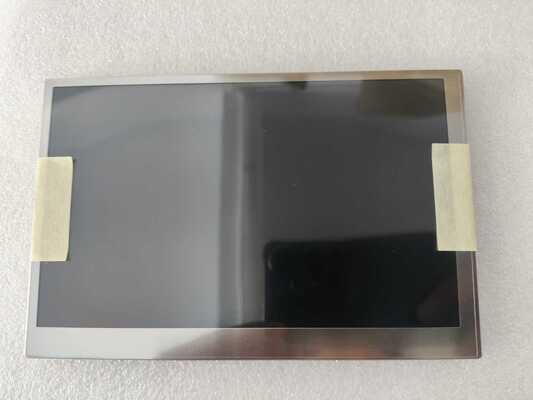

Display Images

Production Note: This model entered mass production in Q3 2018 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting AUO or their authorized distributors directly.
