BOE 12.6inch Stretched LCD Display NV126B5M-N42 with 1920*515pixels Resolution and 400 cd/m² Brightness

Name: BOE 12.6inch Stretched LCD Display NV126B5M-N42 with 1920*515pixels Resolution and 400 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV126B5M-N42
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV126B5M-N42
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

LCM,TFT

Style:

LCM

Resolution:

1920*515pixels

Brightness:

400CCD/M2

Connector:

30Pin

Working Life:

15k Hours

Contrast Ratio:

1200:1

Screen Size:

12.6inch

Packaging Details:

Industrial packing

Highlight:

12.6inch Stretched LCD Display

1920*515pixels Stretched LCD Display

157PPI Stretched LCD Display

Product Description

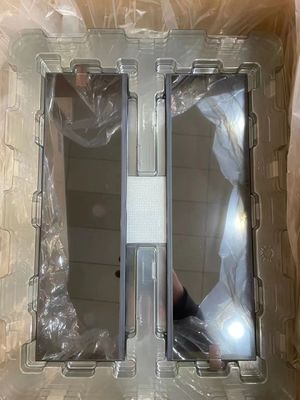

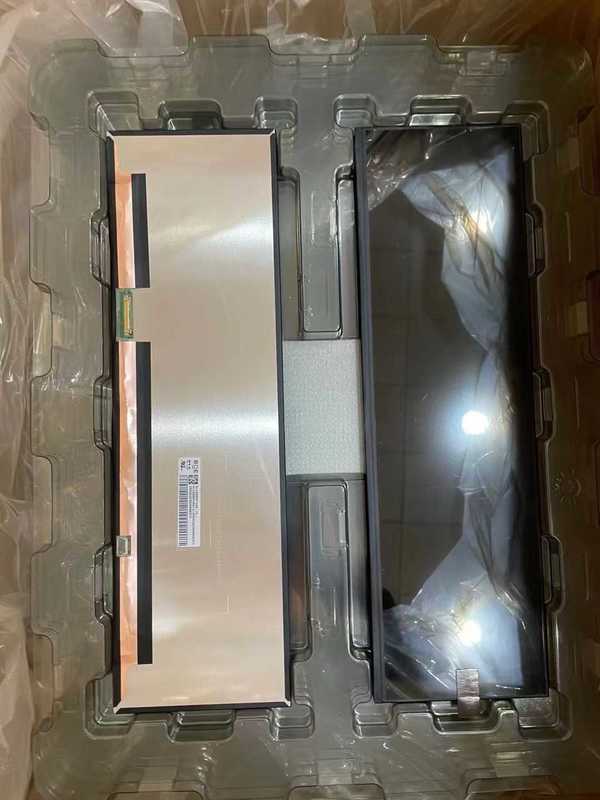

BOE 12.6-inch Stretched LCD Display NV126B5M-N42

BOE Technology Group Co., Ltd. NV126B5M-N42 is a 12.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This stretched bar display features an ultra-wide 1920×515 pixel resolution and is designed for laptop and specialized display applications.

Key Specifications

Brand: BOE

Model: NV126B5M-N42

Diagonal Size: 12.6"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920(RGB)×515 (157PPI)

Active Area: 309.312×82.9665 mm

Brightness: 400 cd/m² (Typ.)

Contrast Ratio: 1200:1 (Typ.)

Viewing Angle: 85/85/85/85 (CR≥10)

Response Time: 30ms (Typ.)

Display Colors: 16.7M (45% NTSC)

Refresh Rate: 60Hz (120Hz/240Hz with MEMC)

Interface: eDP (2 Lanes), eDP1.2, 30-pin connector

Input Voltage: 3.3V (Typ.)

Operating Temp: 0~60°C

Storage Temp: -20~65°C

Technical Features

This display panel features WLED backlight technology with LED driver, matte surface with anti-glare coating, and supports advanced features including sDRRS, CABC, and embedded MEMC circuit for enhanced refresh rates. The panel utilizes ADS technology with normally black, transmissive display mode.

Application

Recommended for laptop displays and stretched bar LCD applications requiring ultra-wide aspect ratios and high-resolution performance.

Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized distributors before making design decisions.
