BOE 10.1inch Industrial LCD Panel with 149PPI Resolution 3.3V Voltage and 30K Hours Working Life

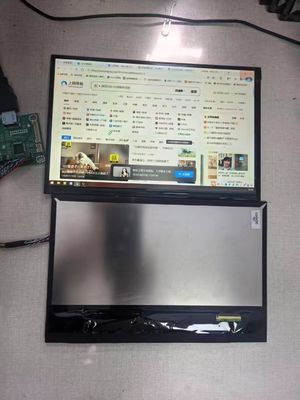

  • Name

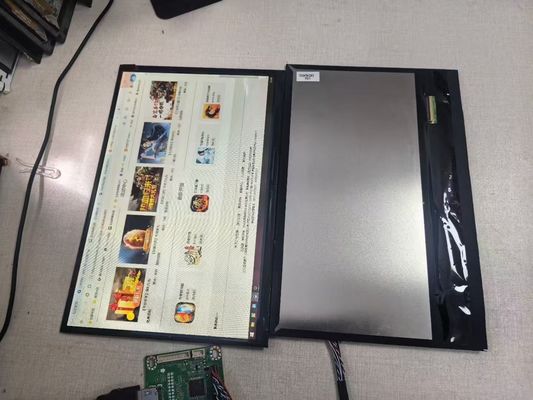

  • Name

BOE 10.1inch Industrial LCD Panel with 149PPI Resolution 3.3V Voltage and 30K Hours Working Life

Brand Name: BOE
Model Number: GV101WXB-NZ0
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1200*800pixels
Style:
40PIN IPS
Brightness:
CD/M2
Color:
16.7m
Contrast Ratio:
1000 :1
Working Life:
30K Hours
Type:
Fob
Size:
10.1inch
Lamp Type:
Tft
Voltage:
3.3V
Supply Ability:
3000pcs per week
Highlight:

149PPI Industrial LCD Panel

,

3.3V TFT-LCD Display

,

30K Hours LCD Display Panel

Product Description
BOE 10.1inch Industrial Lcd panel GV101WXB-NZ0 1200*800Pixels 149PPI 40PIN connector

GV101WXB-NZ0-DGP0 is a 10.1" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: With LED Driver , DGP0, 6bit+Hi-FRC, 3GP0, 8bit. Based on its features, einlcd recommend that this model be applied to Industrial etc.Built-in 2 source chips driver IC. According to the information stored in einklcd this model mass production on Q4, 2019, Now this model is in production. We inputted this model's specification on Aug 1 2019 for the first time, and the latest update on Oct 9 2025. If you want to embed the CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of GV101WXB-NZ0-DGP0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.


Brand:BOE
Model P/N: GV101WXB-NZ0-DGP0
Diagonal Size: 10.1"
Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution: 1280(RGB)×800, WXGA 149PPI
Pixel Format: RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm
Bezel Opening-
Outline Size : 221.96(W)×144.43(H)×1.06(D) mm
Treatment : Hard coating
Luminance 0 cd/m²
Contrast Ratio : 1000 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 30 (Typ.)(Tr+Td) ms
Good View at Symmetry Work Mode ADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Glass Thickness 0.40+0.40 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array Depth Transmissivity -
Color Depth :16.7M 50% NTSC
Backlight No B/L , With LED Driver
Mass - Used for : Industrial
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen :Without
Driver IC list Built-in COG 2 source chips
Signal Type LVDS (1 ch, 8-bit) , 40 pins Connector
Voltage Supply :3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70 °C

BOE 10.1inch Industrial LCD Panel with 149PPI Resolution 3.3V Voltage and 30K Hours Working Life 0
