BOE 10.1inch Industrial LCD Panel with 1200*800Pixels Resolution and 40PIN Connector

Name: BOE 10.1inch Industrial LCD Panel with 1200*800Pixels Resolution and 40PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV101WXB-NZ0
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV101WXB-NZ0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1200*800pixels

Style:

40PIN IPS

Brightness:

CD/M2

Color:

16.7m

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Type:

Fob

Size:

10.1inch

Lamp Type:

Tft

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

149PPI Industrial LCD Panel

3.3V TFT-LCD Display

30K Hours LCD Display Panel

Product Description

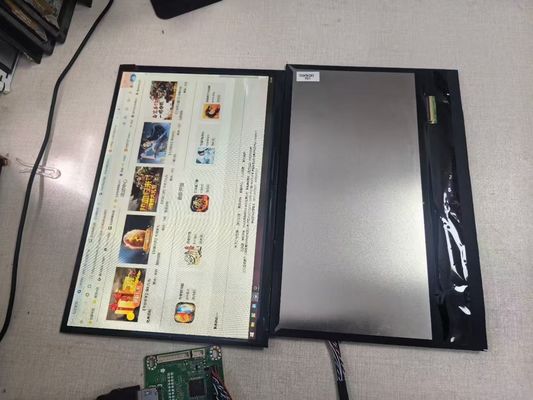

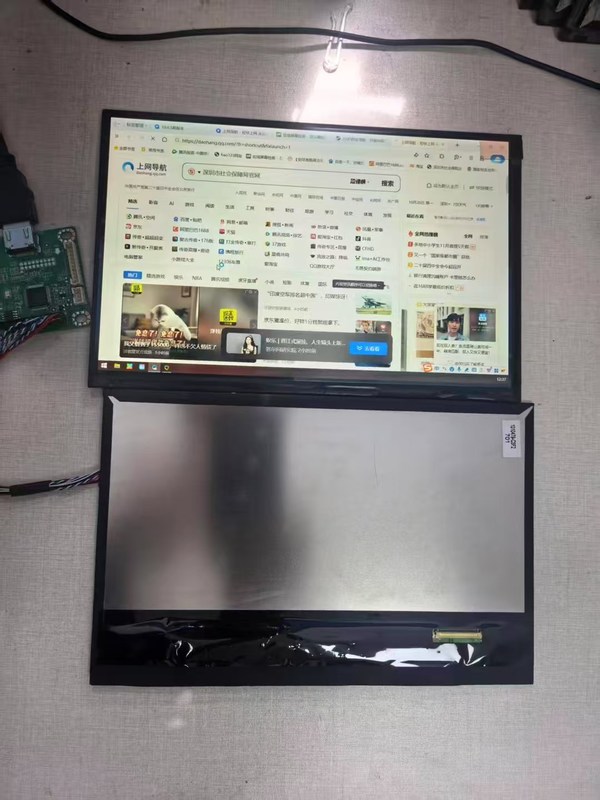

BOE 10.1-inch Industrial LCD Panel GV101WXB-NZ0

GV101WXB-NZ0-DGP0 is a 10.1-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This industrial-grade panel features 1280×800 WXGA resolution, 149 PPI density, and operates within a wide temperature range of -20°C to 70°C. The panel includes built-in LED driver circuitry and utilizes a 40-pin LVDS connector interface.

Key Specifications

Brand: BOE

Model: GV101WXB-NZ0-DGP0

Diagonal Size: 10.1 inches

Resolution: 1280×800 (WXGA)

Pixel Density: 149 PPI

Panel Type: a-Si TFT-LCD, CELL

Active Area: 216.96×135.6 mm

Viewing Angle: 80/80/80/80 (L/R/U/D)

Contrast Ratio: 1000:1 (Typical)

Response Time: 30 ms (Typical)

Color Depth: 16.7M colors (50% NTSC)

Refresh Rate: 60Hz (supports 120Hz with MEMC)

Interface: LVDS (1 ch, 8-bit), 40-pin connector

Operating Temp: -20°C to 70°C

Storage Temp: -30°C to 80°C

Backlight: No backlight (with LED driver)

Touchscreen: Without touch screen

Technical Features

This industrial LCD panel features built-in COG driver IC with 2 source chips, ADS technology with normally black transmissive mode, and supports embedded MEMC circuitry for enhanced motion performance. The panel is designed specifically for industrial applications requiring reliable performance across varying environmental conditions.

Production Status: This model entered mass production in Q4 2019 and is currently in production. For the latest specifications and availability, we recommend contacting BOE or their authorized agents directly. Information provided is for reference only and should not be used as the sole basis for decision-making.
