BOE 21.5inch Industrial LCD Display with 1920x1080Pixels Resolution and 1500cd/M2 Brightness

Brand Name:	BOE
Model Number:	QV215FHB–N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1280pixels

Style:

30PIN IPS

Brightness:

1500CD/M2

Color:

16.7m

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Type:

Lcm

Size:

21.5inch

Lamp Type:

WLED

Voltage:

5.0V

Packaging Details:

Industrial packing

Highlight:

1500cd/M2 Industrial LCD Display

16.7m LCD Panel

1000:1 Contrast Ratio TFT-LCD Display

Product Description

BOE 21.5-inch Industrial LCD Cell QV215FHB-N10

The QV215FHB-N10 is a 21.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This industrial-grade display cell features a 1920×1080 Full HD resolution with 102 PPI and operates without backlight or touch screen.

Product Overview

This display panel is designed for industrial applications with an operating temperature range of -10°C to 50°C and storage temperature range of -20°C to 60°C. The panel supports both landscape and portrait orientations and features a matte surface treatment.

Important Note: This model has been discontinued from mass production. For current production status and specifications, please contact BOE or their authorized agents directly.

Technical Specifications

Brand: BOE

Model: QV215FHB-N10

Diagonal Size: 21.5 inches

Panel Type: a-Si TFT-LCD, CELL, FOB

Resolution: 1920×1080 (FHD), 102 PPI

Active Area: 476.064 × 267.786 mm

Outline Size: 487.2 × 281 × 1.32 mm

Brightness: 1500 cd/m²

Viewing Angle: 89/89/89/89 (CR≥10)

Contrast Ratio: 1000:1 (Typical)

Response Time: 14ms (G to G)

Display Colors: 16.7M, 75% NTSC

Surface Treatment: Antiglare (Haze 25%), Hard coating (3H)

Signal Interface: LVDS (2 ch, 8-bit), 30 pins

Input Voltage: 5.0V (Typical)

Weight: 420g (Typical)

Driver IC: Built-in 6 source + 3 gate chips

Frequency & Refresh Rates

Base Frequency: 60Hz

120Hz Mode: Embedded MEMC Circuit

120Hz+120Hz: 120Hz Panel + 120Hz Backlight

240Hz Mode: Embedded MEMC Circuit

Environmental Specifications

Operating Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

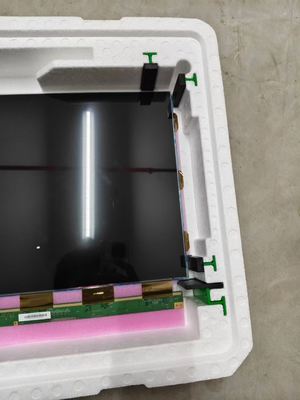

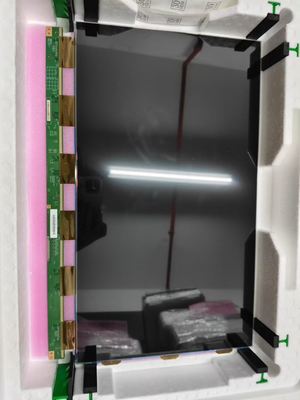

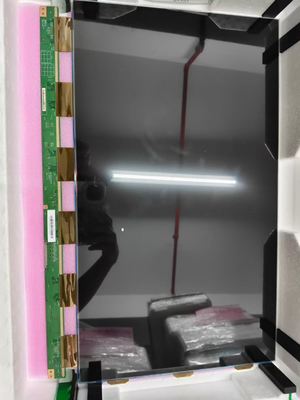

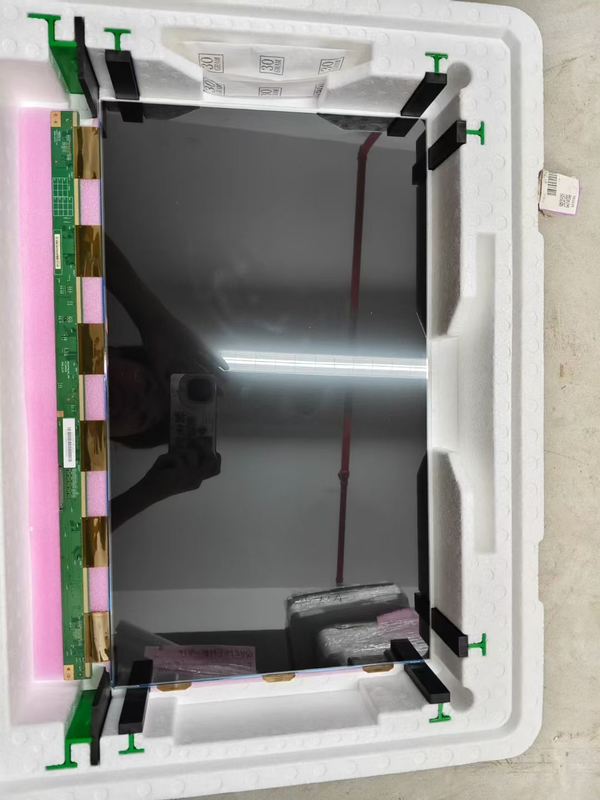

Product Images

Disclaimer: The production status information provided on this page is for reference only and should not be used as the basis for user decision-making. Always verify current specifications with the manufacturer.
