4.3inch Tianma Industrial LCD Panel TM043NDHG28 with 480*272 Resolution and 400cd/m² Brightness

Name: 4.3inch Tianma Industrial LCD Panel TM043NDHG28 with 480*272 Resolution and 400cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM043NDHG28
Price: 43.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM043NDHG28
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7Mcolors

Model:

Lcm

Style:

Wide Screen High Resolution 480*272

Brightness:

400cd

Connector:

Contrast Ratio:

800:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

4.3inch Industrial LCD Panel

480*272 Resolution TFT-LCD Display

400cd/m² Brightness LCM

Product Description

TM043NDHG28-00 4.3-inch Industrial LCD Panel

The TM043NDHG28-00 is a 4.3-inch diagonal a-Si TFT-LCD display panel from Tianma Microelectronics Co., Ltd., featuring an integrated WLED backlight system. This industrial-grade panel operates in extreme temperature conditions and is designed for demanding applications including industrial controls and handheld devices.

Key Features

Wide operating temperature range (-30°C to 85°C)
WLED backlight with 30,000-hour lifespan
Matte anti-glare surface treatment
High brightness 400 cd/m² display
800:1 contrast ratio
Industrial-grade reliability

Technical Specifications

Brand	TIANMA
Model Number	TM043NDHG28-00
Diagonal Size	4.3 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272 (WQVGA), 128 PPI
Active Area	95.04 × 53.856 mm
Outline Dimensions	105.5 × 67.2 × 3.8 mm
Luminance	400 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	70/70/60/70 (Left/Right/Up/Down)
Response Time	25 ms (Typical)
Color Depth	16.7M colors, 50% NTSC
Backlight	5S2P WLED, 30K hours, No Driver
Signal Interface	Parallel RGB (1 channel, 8-bit), 40-pin FPC
Voltage Supply	3.3V/7.5V (VDD/VPP)
Operating Temperature	-30°C to 85°C
Storage Temperature	-30°C to 90°C
Touchscreen	Without touch screen
Refresh Rate	60Hz (supports various enhanced modes)
Primary Applications	Industrial, Handheld & PDA devices

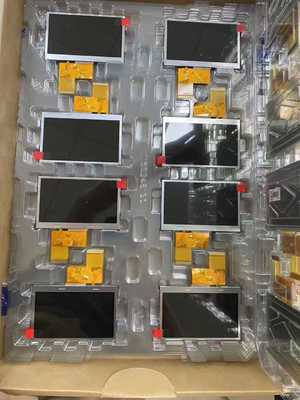

Product Images

Important Note: For integration into your products, we strongly recommend contacting Tianma or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
