Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V

Name: Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ121S1LG88
Price: 43.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1LG88
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

450CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

10.1inch

Lamp Type:

LCM

Voltage:

3.3V

Packaging Details:

Industrial packing

Product Description

Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V

Sharp Corporation (hereafter called Sharp) LQ121S1LG88 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -15 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, Matte , Value IA. Based on its features, einklcd recommend that this model be applied to Industrial, Digital Photo Frame etc. According to the information stored in einklcd this model mass production on Q4, 2012, Now this model is in production. We inputted this model's specification on Jul 19 2012 for the first time, and the latest update on Nov 7 2024. If you want to embed LQ121S1LG88 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's distributor to learn lateast production and specification detail. The LQ121S1LG88 production status marked on einlcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand Sharp

Model P/N:LQ121S1LG88

Compatible Model 1 Compatible

Diagonal Size:12.1"

Panel Type: a-Si TFT-LCD, LCM

Resolution 800(RGB)×600, SVGA 82PPI Pixel

Format RGB Vertical Stripe

Active Area 246(W)×184.5(H) mm

Bezel Opening 249.0(W)×187.5(H) mm

Outline Dim. 276(H)×209(V) ×9.6(D) mm

Treatment Antiglare, Hard coating (3H)

Luminance :450 cd/m² (Typ.)

Contrast Ratio :800:1 (Typ.) (TM)

View Direction 6 o'clock

Response Time 30 (Typ.)(Tr+Td)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Support Color 262K 53% NTSC

Light Source WLED , 50K hours , With LED Driver

Weight 750g (Max.)

Designed For Industrial Digital Photo Frame

Frame Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit Touch Panel Without

Interface Type LVDS (1 ch, 6-bit) , 20 pins Connector

Power Supply 3.3V (Typ.)

Environment Operating Temperature: -15 ~ 70 °C ;

Storage Temperature: -30 ~ 80 °C

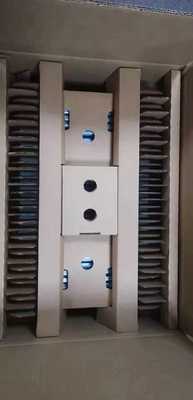

Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V 0

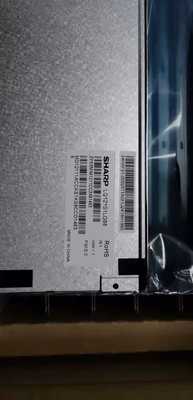

Sharp 12.1nch Industrial Lcd panel LQ121S1LG88 800*600Pixels 82PPI 450cd/M2 20PIN 3.3V 1
