Sharp 12.1 Inch Industrial LCD Display Panel LQ121S1LG88 with 800*600 Pixels Resolution and 450cd/m2 Brightness

Name: Sharp 12.1 Inch Industrial LCD Display Panel LQ121S1LG88 with 800*600 Pixels Resolution and 450cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ121S1LG88
Price: 43.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1LG88
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

450CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

10.1inch

Lamp Type:

LCM

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

12.1 inch Industrial LCD Display

800*600 pixels LCD Panel

450cd/m2 TFT-LCD Display

Product Description

Sharp 12.1-inch Industrial LCD Panel LQ121S1LG88

High-performance 12.1-inch TFT-LCD display panel designed for industrial applications, featuring 800×600 SVGA resolution, 450 cd/m² brightness, and wide operating temperature range.

Product Overview

The Sharp LQ121S1LG88 is a 12.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This industrial-grade panel operates in temperatures from -15°C to 70°C and withstands vibration levels up to 1.0G (9.8 m/s²).

Key Specifications

Model Number: LQ121S1LG88

Diagonal Size: 12.1 inches

Resolution: 800×600 pixels (SVGA)

Pixel Density: 82 PPI

Brightness: 450 cd/m²

Contrast Ratio: 800:1

Viewing Angle: 80/80/60/80 (L/R/U/D)

Response Time: 30 ms

Interface: LVDS (1 ch, 6-bit), 20-pin

Power Supply: 3.3V

Weight: 750g maximum

Key Features

WLED backlight with 50,000-hour lifespan
Integrated LED driver included
180-degree reverse capability
Matte anti-glare surface treatment
Hard coating (3H) for durability
TN technology with normally white, transmissive operation
Supports 262K colors with 53% NTSC
Frame rate: 60Hz standard operation

Environmental Specifications

Operating Temperature: -15°C to 70°C

Storage Temperature: -30°C to 80°C

Vibration Resistance: 1.0G (9.8 m/s²)

Physical Dimensions

Active Area: 246 × 184.5 mm

Bezel Opening: 249.0 × 187.5 mm

Outline Dimensions: 276 × 209 × 9.6 mm

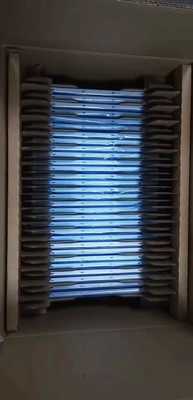

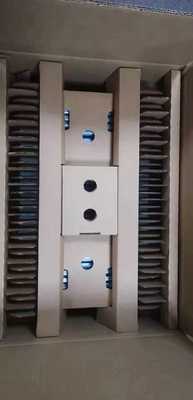

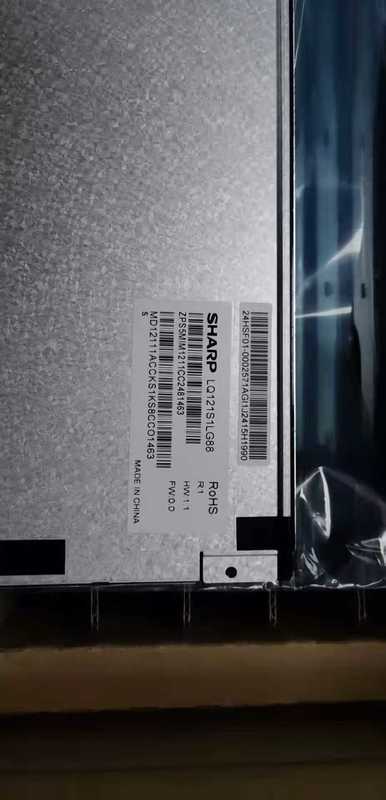

Product Images

Important Note: This model entered mass production in Q4 2012 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting Sharp or their authorized distributors directly.
