Mitsubishi 10.4Inch Industrial LCD Display with 1000cd/M2 Brightness 1024X768P Resolution and 20PIN Connector

Name: Mitsubishi 10.4Inch Industrial LCD Display with 1000cd/M2 Brightness 1024X768P Resolution and 20PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AA104XD12
Price: 43.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AA104XD12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*768pixels

Style:

20PIN IPS

Brightness:

1000CD/M2

Color:

16.7m

Contrast Ratio:

700 :1

Working Life:

100K Hours

Type:

Lcm

Size:

10.4inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

1000cd/M2 Industrial LCD Display

1024X768P LCD Panel

20PIN TFT-LCD Display

Product Description

Mitsubishi 10.4-Inch Industrial LCD Panel AA104XD12

The AA104XD12 (Alias: T-55533D104J-LW-A-ABN) is a 10.4-inch diagonal a-Si TFT-LCD display panel from Mitsubishi Electric Corporation featuring an integral WLED backlight system. This industrial-grade panel is designed for demanding applications with its ultra-high brightness and wide operating temperature range.

Key Features

Ultra High Brightness: 1000 cd/m² for outdoor visibility
Wide Temperature Range: -30°C to 80°C operation
Industrial Grade Construction
WLED Backlight with 100,000-hour lifespan
Replaceable Lamp Design
Matte Anti-glare Treatment with Hard Coating (3H)

Technical Specifications

Model Number	AA104XD12
Brand	Mitsubishi
Diagonal Size	10.4 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB) × 768 (XGA), 123 PPI
Active Area	210.4(W) × 157.8(H) mm
Outline Dimensions	230(W) × 180.2(H) × 11(D) mm
Luminance	1000 cd/m² (Typical)
Viewing Angle	80/80/65/65 (CR ≥10) Left/Right/Up/Down
Optimal Viewing	6 o'clock position
Contrast Ratio	700:1 (Typical)
Color Depth	262K/16.7M, 40% NTSC
Response Time	4/12 ms (Typical) Tr/Td
Refresh Rate	60Hz (120Hz with Embedded MEMC Circuit)
Signal Type	LVDS (1 ch, 6/8-bit), 20-pin Connector
Voltage Supply	3.3V (Typical)
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Weight	520g (Typical)
Touchscreen	Without
Backlight	4 strings WLED, No Driver

Application Areas

This high-brightness LCD panel is specifically designed for industrial and outdoor applications where superior visibility and reliability are essential.

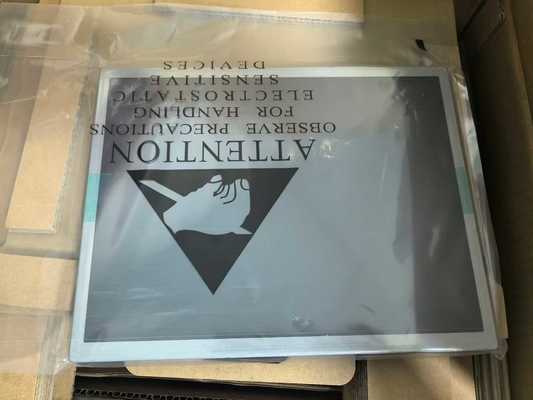

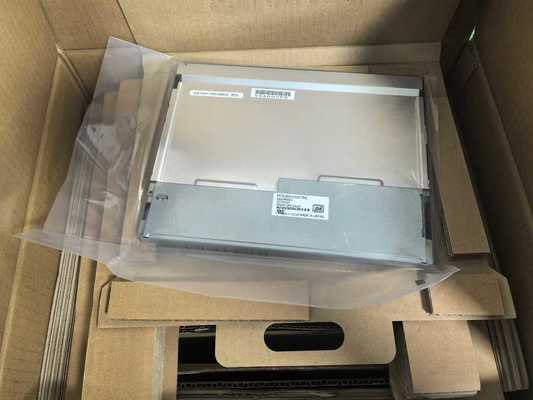

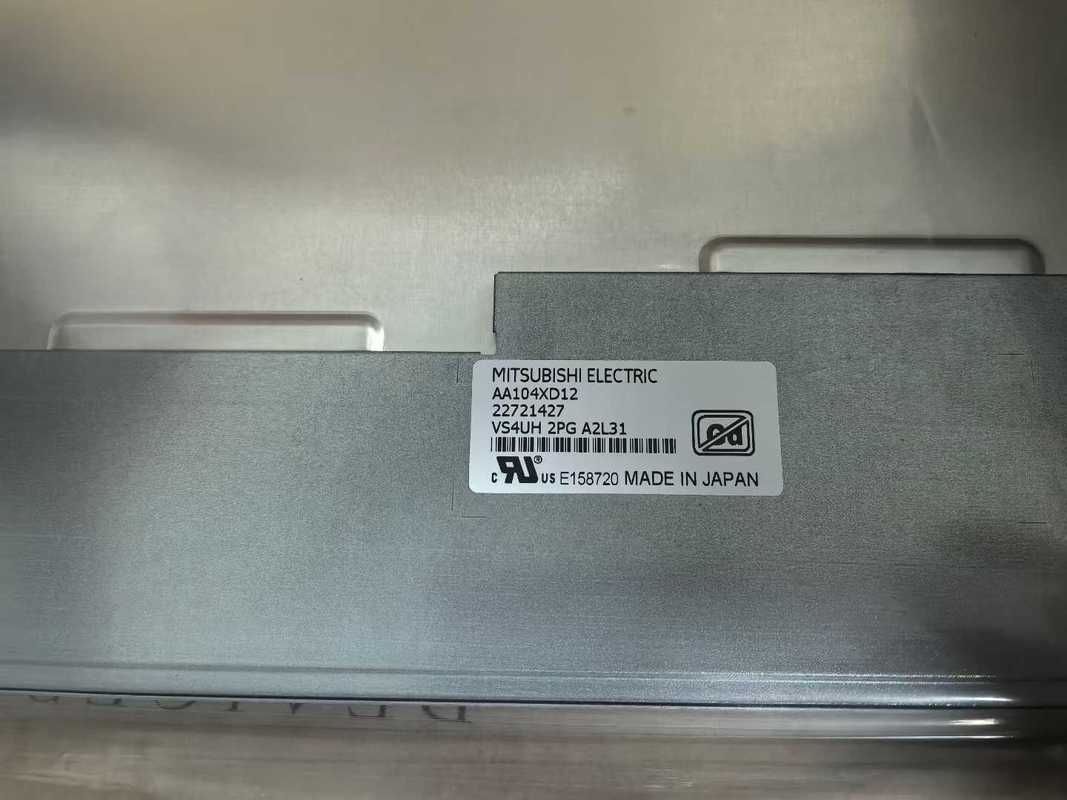

Product Images

Important Notice

This model entered mass production in Q1 2009 and is now discontinued. Specifications provided are for reference only. For integration into future products, please contact Mitsubishi or their authorized agents for the latest production and specification details.
