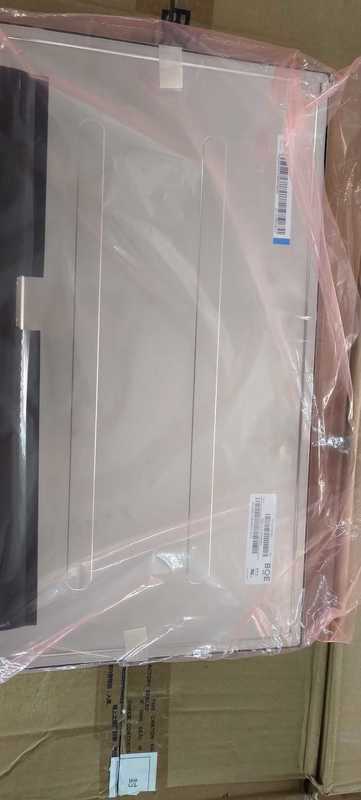

BOE 21.5inch Industrial LCD Display TFT-LCD Panel with 1500cd/m2 Brightness and 30PIN Interface

Name: BOE 21.5inch Industrial LCD Display TFT-LCD Panel with 1500cd/m2 Brightness and 30PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV215FHM-R11
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV215FHM-R11
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1280pixels

Style:

30PIN IPS

Brightness:

400CD/M2

Color:

16.7m

Contrast Ratio:

1500 :1

Working Life:

30K Hours

Type:

Lcm

Size:

21.5inch

Lamp Type:

WLED

Voltage:

5.5V

Packaging Details:

Industrial packing

Highlight:

21.5inch Industrial LCD Display

1500cd/m2 TFT-LCD Panel

30PIN LCM

Product Description

BOE 21.5-inch Industrial LCD Display DV215FHM-R11

The DV215FHM-R10 is a 21.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system. This industrial-grade panel operates within a temperature range of -20°C to 60°C and is designed for demanding applications requiring ultra-high brightness and reliability.

Key Features

Ultra High Brightness (1500 cd/m²), WLED Backlight with 50,000-hour lifespan, Matte anti-glare surface, Reverse type configuration, and robust construction for industrial environments.

Technical Specifications

Brand: BOE

Model: DV215FHM-R10

Diagonal Size: 21.5"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920×1080 (FHD), 102 PPI

Brightness: 1500 cd/m² (Typical)

Contrast Ratio: 1000:1 (Typical)

Viewing Angle: 89/89/89/89 (CR≥10)

Response Time: 14ms (G to G)

Interface: LVDS (2 ch, 8-bit), 30-pin Connector

Power Supply: 5.5V (Typical)

Operating Temp: -20°C to 60°C

Storage Temp: -30°C to 70°C

Weight: 2.00 kg (Typical)

Application Areas

Industrial equipment, digital signage, outdoor high-brightness displays, and other applications requiring reliable performance in challenging environments.

Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents directly.
