BOE 21.5inch Industrial LCD Display with 1920x1080Pixels Resolution and 400cd/M2 Brightness

Name: BOE 21.5inch Industrial LCD Display with 1920x1080Pixels Resolution and 400cd/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV215FHM-AM3
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV215FHM-AM3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

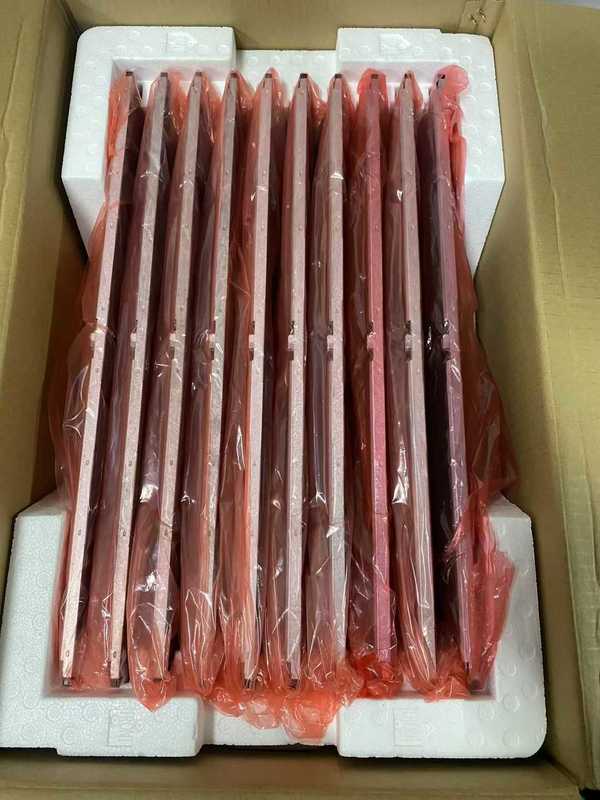

Package:

Original Industrial Packing

Resolution:

1920*1280pixels

Style:

30PIN IPS

Brightness:

400CD/M2

Color:

16.7m

Contrast Ratio:

1500 :1

Working Life:

30K Hours

Type:

Lcm

Size:

21.5inch

Lamp Type:

WLED

Voltage:

Packaging Details:

Industrial packing

Highlight:

21.5inch Industrial LCD Display

1920x1080Pixels LCD Panel

400cd/M2 TFT-LCD Display

Product Description

BOE 21.5-inch Industrial LCD Display - Model TV215FHM-AM3

High-performance 21.5-inch industrial TFT-LCD display panel featuring Full HD resolution, advanced touch capabilities, and robust construction for demanding industrial applications.

Key Specifications

Brand	BOE
Model Number	TV215FHM-AM3
Display Size	21.5-inch Diagonal
Resolution	1920 × 1080 (FHD), 102 PPI
Panel Type	a-Si TFT-LCD with Assembly
Brightness	400 cd/m² (Typical)
Contrast Ratio	1500:1 (Typical)
Viewing Angle	89°/89°/89°/89° (Left/Right/Up/Down)
Response Time	25ms (Max, Gray-to-Gray)
Refresh Rate	60Hz (120Hz with Embedded MEMC Circuit)
Touchscreen	PCAP, I²C Interface
Interface	LVDS (2 channel, 8-bit), 30-pin Connector
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Power Supply	5.0V (Typical)
Weight	2.40 kg (Typical)

Advanced Features

Full HD 1920×1080 resolution with 102 pixels per inch density
Anti-fingerprint hard coating treatment (7H hardness)
16.7 million colors with 100% sRGB color gamut
WLED backlight system with 30,000-hour lifespan
Embedded MEMC circuit for enhanced motion performance
Projected capacitive touch technology
ADS technology with normally black operation

Product Overview

The TV215FHM-AM3 is a 21.5-inch industrial-grade TFT-LCD display panel from BOE Technology Group, featuring an integrated WLED backlight system and projected capacitive touchscreen. Designed for reliability in industrial environments, this display offers excellent viewing characteristics, robust construction, and extended temperature operation capabilities.

Application Note: This model is specifically designed for industrial applications. For integration into your products, we recommend contacting BOE or their authorized agents for the latest production status and detailed specifications.
