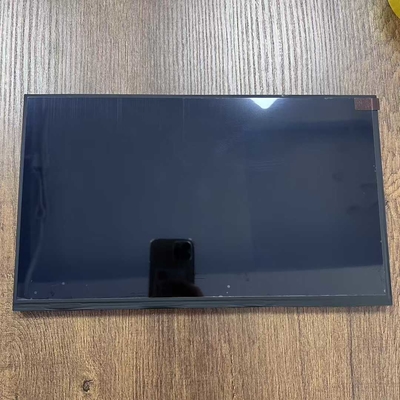

BOE 14.6inch automotive LCD Display model AV146FHM-N10 1920*1080Pixels 60pin car lcd panel

The AV146FHM-N10 is a 14.6 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C . It's general features are summarized by Einklcd in the following: Wide Temperature, Hight Brightness, WLED Backlight, U/D,L/R Reverse . Based on its features, einklcd recommend that this model be applied to Automotive Display etc.Built-in HX8298-C*4 + HX8691-A*2 driver IC. According to the information stored in einklcd this model mass production on Q4, 2022, Now this model is in production.  We inputted this model's specification on Feb 28 2022 for the first time, and the latest update on Jan 30 2024. If you want to embed AV146FHM-N10 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The AV146FHM-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N: AV146FHM-N10
Diagonal Size:14.6"

Panel Type: a-Si TFT-LCD, LCM
Resolution1920(RGB)×1080, FHD 150PPI Pixel

Format RGB Vertical Stripe
Active Area 323.136(W)×181.764(H) mm

Bezel Opening-
Outline Size 336.249(W)×198.46(H) ×12.92(D) mm

Surface-
Brightness: 650 cd/m² (Typ.)

Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / DownDisplay ModeADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View onSymmetry

Response Time:25 (Typ.)(Tr+Td)
Display Colors:16.7M 70% NTSC

Lamp Type: 8S6P WLED , 30K hours , Without Driver
Frequency 60Hz

Touch Screen: Without
Panel Weight: 703g (Max.)

Application: Automotive Display
Signal Interface LVDS (2 ch, 8-bit) , 60 pins Connector
Input Voltage 3.3/5.0V (Typ.)(VCC/AVDD)
Environment Operating Temp.: -30 ~ 85 °C ;

Storage Temp.: -40 ~ 90 °C
