BOE 14.6inch Automotive LCD Display 1920*1080Pixels 650 cd/m² Brightness 60pin Connector Car LCD Panel

Name: BOE 14.6inch Automotive LCD Display 1920*1080Pixels 650 cd/m² Brightness 60pin Connector Car LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV146FHM-N10
Price: 56 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV146FHM-N10
MOQ:	10pcs
Price:	$56
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	2000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

LCD 60PIN

Brightness:

650CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Touch Panel:

Without Touch

Packaging Details:

Industrial packing

Highlight:

1920*1080Pixels Car LCD Display

650 cd/m² Brightness Automotive LCD Panel

60pin Connector TFT-LCD Display

Product Description

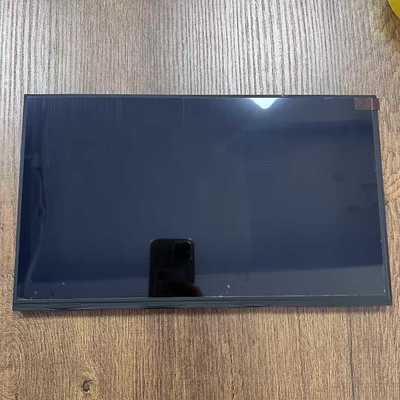

BOE AV146FHM-N10 Automotive LCD Display

The AV146FHM-N10 is a 14.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system designed specifically for automotive applications.

Key Features

Wide operating temperature range (-30°C to 85°C)
High brightness 650 cd/m² for excellent visibility
WLED backlight with 30,000-hour lifespan
Full HD 1920×1080 resolution with 150 PPI
Advanced Display System (ADS) technology
LVDS interface with 60-pin connector

Technical Specifications

Model Number	AV146FHM-N10
Display Size	14.6-inch diagonal
Resolution	1920(RGB)×1080 (FHD), 150 PPI
Panel Type	a-Si TFT-LCD with ADS technology
Active Area	323.136mm × 181.764mm
Brightness	650 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85°/85°/85°/85° (Left/Right/Up/Down)
Response Time	25ms (Typical, Tr+Td)
Color Support	16.7 million colors, 70% NTSC
Backlight	8S6P WLED, 30K hours lifespan
Interface	LVDS (2 channel, 8-bit), 60-pin connector
Input Voltage	3.3V/5.0V (VCC/AVDD)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 90°C
Panel Weight	703g (Maximum)
Touch Screen	Without touch screen

Application

Specifically designed for automotive display systems requiring high reliability and performance in extreme temperature conditions.

Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents directly.
