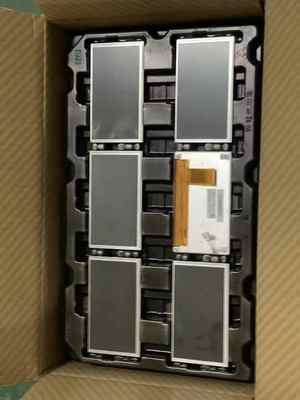

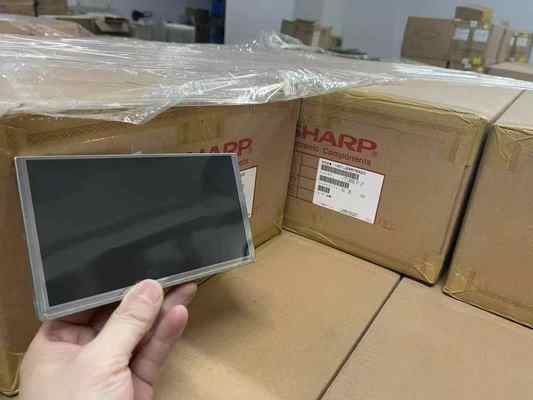

Sharp 6.5inch Automotive LCD Display 800*480 Pixels 500 cd/m² Car LCD Panel LQ065Y5DG03

Name: Sharp 6.5inch Automotive LCD Display 800*480 Pixels 500 cd/m² Car LCD Panel LQ065Y5DG03
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ065Y5DG03
Price: 56 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ065Y5DG03
MOQ:	10pcs
Price:	$56
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	2000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480pixels

Style:

LCD 50PIN

Brightness:

500CCD M2

Color:

262K

Contrast Ratio:

300 :1

Working Life:

10K Hours

Touch Panel:

Without Touch

Packaging Details:

Industrial packing

Highlight:

6.5inch Car LCD Display

800*480 Pixels Automotive LCD Panel

500 cd/m² LCD Display Module

Product Description

Sharp 6.5-inch Automotive LCD Display LQ065Y5DG03

The LQ065Y5DG03 is a 6.5-inch diagonal automotive TFT-LCD display panel from Sharp Corporation, designed specifically for automotive applications with wide temperature operation and robust environmental specifications.

Key Features

6.5-inch diagonal display with 800×480 WVGA resolution
Wide operating temperature range: -30°C to 85°C
High brightness: 500 cd/m² typical
Designed for automotive display applications
Antiglare and antireflection treatment
Vibration resistant: 3.0G (29.4 m/s²)

Technical Specifications

Brand	Sharp
Model Number	LQ065Y5DG03
Diagonal Size	6.5 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480 (WVGA), 144 PPI
Active Area	144(W) × 79.24(H) mm
Outline Dimensions	157.4(W) × 89.7(H) × 12.6(D) mm
Luminance	500 cd/m² (Typical)
Viewing Angle	60/60/40/55 (Left/Right/Up/Down, CR≥5)
Contrast Ratio	300:1 (Typical)
Response Time	10/16 ms (Typical, Tr/Td)
Interface	Parallel RGB (1 channel, 6-bit), 50-pin FPC
Power Supply	5.3V/3.3V/15V/-12V (VSHA/VSHD/VDD/VEEDC)
Light Source	CCFL [1 piece], 10K hours, Without Driver
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 85°C
Weight	180g (Maximum)

Display Performance

This automotive LCD panel features advanced display technologies including embedded MEMC circuit supporting 120Hz refresh rate (with 60Hz input) and 240Hz operation capability. The panel utilizes TN technology with normally white, transmissive operating mode.

Important Notice

This model entered mass production in Q2 2008 with last shipment in Q1 2016. The product is currently discontinued. For integration into future products, we strongly recommend contacting Sharp or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision making.
