Car LCD Display
>
LG 15.4Inch automotive LCD Display model LA154WU1-SL01 1920*1200Pixels 6pin outdoor high brightness lcd panel

LG 15.4Inch automotive LCD Display model LA154WU1-SL01 1920*1200Pixels 6pin outdoor high brightness lcd panel

Brand Name: LG
Model Number: LA154WU1-SL01
MOQ: 10pcs
Price: $56
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*1200pixels
Style:
LCD 6PIN
Brightness:
800CCD M2
Color:
16.7M
Contrast Ratio:
1450 :1
Working Life:
20K Hours
Touch Panel:
Without Touch
Supply Ability:
2000pcs per week
Product Description

LG 15.4Inch automotive LCD Display model LA154WU1-SL01 1920*1200Pixels 6pin outdoor high brightness lcd panel



LG Display Co., Ltd. (hereafter called LG Display) LA154WU1-SL01 (Alias: LA154WU1 (SL)(01)) is a 15.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . It's general features are summarized by einklcd in the following: DCI-P3, sRGB, Wide Temperature, Hight Brightness, WLED Backlight, With LED Driver, Glossy , Interface: S-LVDS. Based on its features, einklcd recommend that this model be applied to Outdoor High Brightness, Automotive Display etc. According to the information stored in einklcd this model mass production on Q4, 2017, Now this model is discontinued. We inputted this model's specification on Mar 4 2019 for the first time, and the latest update on Feb 21 2023. If you want to embed LA154WU1-SL01 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LA154WU1-SL01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Brand LG

Display Model :P/NLA154WU1-SL01
Diagonal Size: 15.4"

Panel Type: a-Si TFT-LCD, LCM
Resolution1920(RGB)×1200, WUXGA 147PPI Pixel

Format RGB Vertical Stripe
Active Area 330.624(W)×206.64(H) mm

Bezel Opening-
Outline (mm)341.2×219.14×13 (H×V×D)

Treatment Glare (Haze 0%), Hard coating (3H)
Luminance 800 cd/m² (Typ.)

Contrast Ratio1450 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Left / Right / Up / Down

Response 10/8 (Typ.)(Tr/Td) ms
Good View at Symmetry

Work Mode IPS, Normally Black, Transmissive
Color Depth16.7M 87% NTSC

Back light WLED , 20K hours , With LED Driver
Mass 830/850g (Typ./Max.)

Used for: Outdoor High Brightness  Automotive Display
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type SLVS (1 ch, 2 port) , Connector 6 pins
Voltage Supply 12.0V (Typ.)
Max. Ratings

Storage Temp.: -40 ~ 95 °C

Operating Temp.: -30 ~ 85 °C

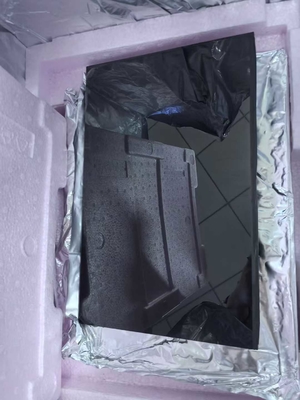

LG 15.4Inch  automotive  LCD Display model LA154WU1-SL01 1920*1200Pixels 6pin outdoor high brightness lcd panel 0

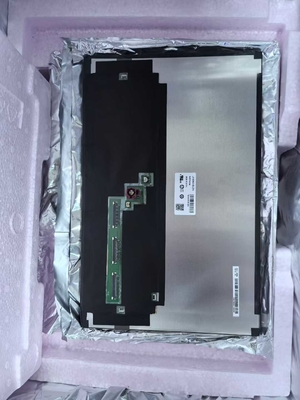

LG 15.4Inch  automotive  LCD Display model LA154WU1-SL01 1920*1200Pixels 6pin outdoor high brightness lcd panel 1
