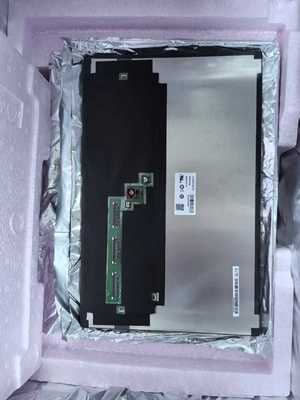

LG 15.4 Inch Automotive LCD Display with 1920*1200 Pixels and 800 cd/m² High Brightness for Outdoor Use

Name: LG 15.4 Inch Automotive LCD Display with 1920*1200 Pixels and 800 cd/m² High Brightness for Outdoor Use
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LA154WU1-SL01
Price: 56 USD
Availability: InStock

Brand Name:	LG
Model Number:	LA154WU1-SL01
MOQ:	10pcs
Price:	$56
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	2000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1200pixels

Style:

LCD 6PIN

Brightness:

800CCD M2

Color:

16.7M

Contrast Ratio:

1450 :1

Working Life:

20K Hours

Touch Panel:

Without Touch

Packaging Details:

Industrial packing

Highlight:

1920*1200 Pixels Automotive LCD Display

800 cd/m² Brightness Car LCD Panel

15.4 Inch LCD Display Module

Product Description

LG 15.4-Inch Automotive LCD Display LA154WU1-SL01

Product Overview

The LG LA154WU1-SL01 is a 15.4-inch diagonal automotive-grade TFT-LCD display panel featuring high brightness for outdoor applications. This WUXGA resolution panel delivers exceptional performance in demanding environments with its wide temperature range and advanced display technology.

Key Features

15.4-inch WUXGA display (1920×1200 pixels)
High brightness 800 cd/m² for outdoor visibility
Wide operating temperature: -30°C to 85°C
IPS technology with 89/89/89/89 viewing angles
DCI-P3 and sRGB color gamut support
120Hz refresh rate with embedded MEMC circuit
WLED backlight with 20,000-hour lifespan
6-pin SLVS interface

Technical Specifications

Display Model	LA154WU1-SL01
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200 (WUXGA), 147 PPI
Active Area	330.624 × 206.64 mm
Outline Dimensions	341.2 × 219.14 × 13 mm (H×V×D)
Luminance	800 cd/m² (Typical)
Contrast Ratio	1450:1 (Typical)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down)
Response Time	10/8 ms (Tr/Td)
Color Depth	16.7M colors, 87% NTSC
Backlight System	WLED with LED Driver, 20K hours
Interface	SLVS (1 ch, 2 port), 6-pin connector
Voltage Supply	12.0V (Typical)
Weight	830/850g (Typical/Maximum)

Environmental Specifications

Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C

Application Areas

Outdoor High Brightness Displays
Automotive Display Systems

Important Notice: This model entered mass production in Q4 2017 and is currently discontinued. The information provided is for reference only and should not be used as the sole basis for decision-making. For current production status and detailed specifications, please contact LG Display or their authorized distributors.
