BOE 19inch Stretched LCD Display Bar LCD with 1920*360pixels Resolution and 30Pin Connector for Digital Signage

Name: BOE 19inch Stretched LCD Display Bar LCD with 1920*360pixels Resolution and 30Pin Connector for Digital Signage
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV190FBM-NB0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV190FBM-NB0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

LCM,TFT

Style:

Bar Lcd Display

Resolution:

1920*360pixels

Brightness:

300CCD/M2

Connector:

30Pin

Working Life:

50k Hours

Contrast Ratio:

1200:1

Screen Size:

19inch

Packaging Details:

Industrial packing

Highlight:

19inch Stretched LCD Display

1920*360pixels Bar LCD Display

30Pin Digital Signage LCD

Product Description

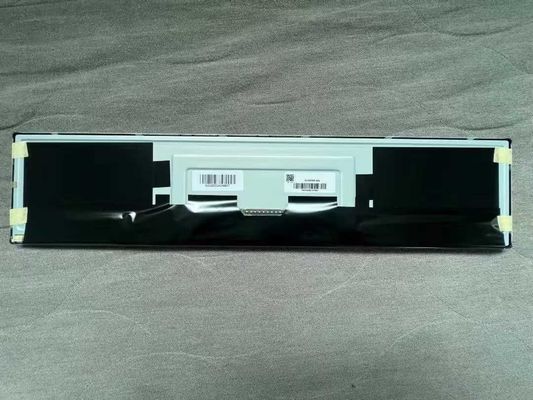

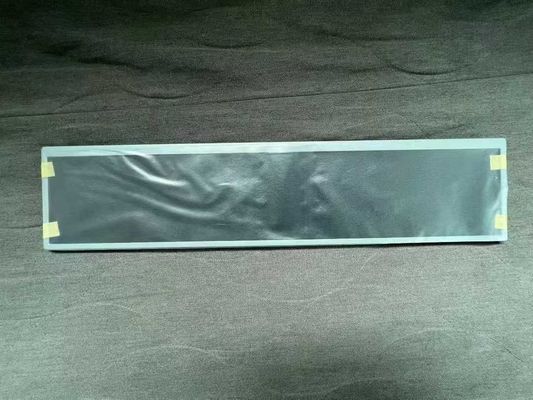

BOE 19-inch Digital Signage LCD Display - DV190FBM-NB0

The BOE DV190FBM-NB0 is a 19.1-inch stretched bar LCD display designed specifically for digital signage applications. This professional-grade panel features a unique 1920×360 resolution format, making it ideal for narrow format displays and information boards.

Product Overview

BOE Technology Group's DV190FBM-NB0 is a 19.1-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This stretched bar display operates within a temperature range of 0~60°C and is engineered for continuous digital signage operation with features including sRGB color support, matte anti-glare treatment, and Energy Star 6.0 compliance.

Key Features

Stretched bar format ideal for digital signage applications
High brightness 300 cd/m² display with 1200:1 contrast ratio
WLED backlight with 50,000+ hours lifespan
Wide 89/89/89/89 viewing angle (CR≥10)
sRGB color gamut with 16.7 million colors
Energy Star 6.0 compliant for energy efficiency
LVDS interface with 30-pin connector

Technical Specifications

Brand	BOE
Model Number	DV190FBM-NB0
Diagonal Size	19.1" (1/3 cut of 21.5")
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×360 pixels, 102 PPI
Active Area	476.64(W) × 89.37(H) mm
Outline Dimensions	491.5(H) × 109.4(V) × 13.3(D) mm
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Response Time	30ms (Typical, Tr+Td)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down, CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	16.7 million colors, 72% NTSC
Light Source	WLED, 50K hours lifespan, Without Driver
Weight	780g (Typical)
Interface Type	LVDS (2 ch, 8-bit), 30-pin Connector
Power Supply	5.0V (Typical)
Operating Temperature	0°C ~ 60°C
Storage Temperature	-20°C ~ 60°C
Frame Rate Options	60Hz standard, 120Hz with embedded MEMC circuit, 240Hz with embedded MEMC circuit

Application Areas

This stretched LCD display is specifically designed for digital signage applications, including information displays, advertising boards, transportation information systems, and narrow format commercial displays where space is limited but visibility is critical.

Important Note: The production status information provided is for reference only and should not be used as the sole basis for decision-making. For the latest production availability and detailed specifications, please contact BOE or their authorized distributors directly.
