AUO 8.9inch Stretched Bar LCD Display 1280*272pixels 1750CCD/M2 Brightness Monitor for Outdoor

Name: AUO 8.9inch Stretched Bar LCD Display 1280*272pixels 1750CCD/M2 Brightness Monitor for Outdoor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: C089KAN01.0
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	C089KAN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

LCM,TFT

Style:

Bar Lcd Display

Resolution:

1280*272pixels

Brightness:

1750CCD/M2

Connector:

40Pin

Working Life:

50k Hours

Contrast Ratio:

1000:1

Packaging Details:

Industrial packing

Highlight:

8.9inch Stretched bar LCD Display

C089KAN01.0 Stretched bar LCD Display

40Pin Stretched bar LCD Display

Product Description

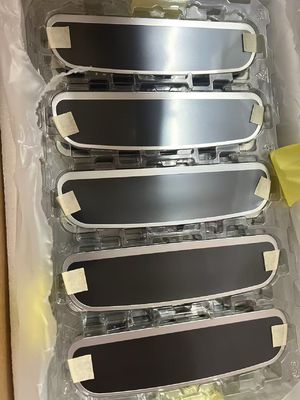

AUO 8.9-inch Stretched Bar LCD Display C089KAN01.0

The C089KAN01.0 is an 8.9-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system. This stretched bar format display is engineered for demanding outdoor and automotive applications with its ultra-high brightness and wide operating temperature range.

Key Features

Ultra High Brightness: 1750 cd/m² for outdoor visibility
Wide Temperature Operation: -30°C to 85°C
Stretched Bar Display Format: 1280*272 resolution
WLED Backlight System
Anti-glare Surface Treatment
180° Reverse Viewing Capability

Technical Specifications

Model Number	C089KAN01.0
Diagonal Size	8.9" (Native Bar Format)
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*272 pixels (147 PPI)
Active Area	220.032(W) * 46.7568(H) mm
Luminance	1750 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	80/80/80/80 (Left/Right/Up/Down, CR≥10)
Response Time	9/11 ms (Typical, Tr/Td)
Color Depth	16.7 Million Colors
Backlight	WLED
Signal Type	LVDS (1 channel, 8-bit), 40-pin connector
Refresh Rate	60Hz (with embedded MEMC circuit options)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C
Weight	181.7±18g

Recommended Applications

This display is ideally suited for outdoor high-brightness applications, stretched bar LCD implementations, and automotive display systems requiring reliable performance in extreme environmental conditions.

Important Notice: This model (C089KAN01.0) is currently discontinued. Mass production began in Q3 2016 with last shipments in Q4 2020. For current production status and specifications, please contact AU Optronics or their authorized agents directly.
