LG 23.8inch Industrial LCD Display Desktop LCD Monitor with 3840x2160 Pixels and 350cd/m2 Brightness

Brand Name:	LG
Model Number:	LP133WQ1-SPB1
MOQ:	10pcs
Price:	$48 or Negotiation for mass order
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2560*1600pixels

Style:

30PIN IPS

Brightness:

350CD/M2

Color:

1.07B

Contrast Ratio:

1300 :1

Working Life:

30K Hours

Type:

Lcm

Size:

23.8inch

Lamp Type:

WLED

Voltage:

10.0V

Packaging Details:

Industrial packing

Highlight:

350cd/M2 Desktop Lcd Monitor

LM238WR3-SSC1 Desktop Lcd Monitor

23.8inch Desktop Lcd Monitor

Product Description

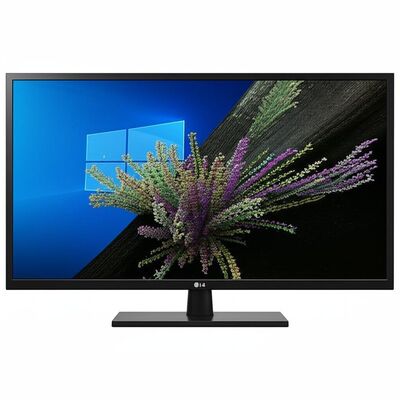

LG 23.8-inch Desktop LCD Monitor LM238WR3-SSC1

High-resolution 23.8-inch UHD display panel with 3840*2160 pixel resolution and 185 PPI density, delivering exceptional image clarity for professional applications.

Product Overview

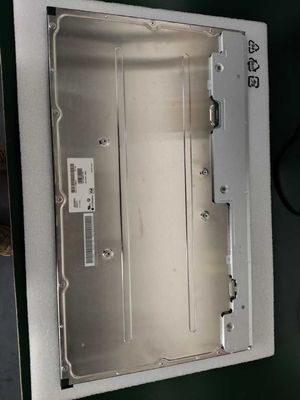

The LM238WR3-SSC1 is a 23.8-inch diagonal a-Si TFT-LCD display panel from LG Display featuring an integrated WLED backlight system. This professional-grade monitor offers wide color gamut coverage, sRGB compatibility, and 3-side borderless design for seamless multi-monitor setups.

Key Features

• Ultra HD Resolution: 3840*2160 pixels at 185 PPI
• Wide Color Gamut with sRGB Support
• 3-Side Borderless Design
• IPS Technology with 89/89/89/89 Viewing Angle
• 10-bit Color Depth (1.07 Billion Colors)
• Matte Anti-Glare Surface with Hard Coating (3H)
• eDP Interface with 30-pin Connector

Technical Specifications

Brand	LG Display
Model Number	LM238WR3-SSC1
Diagonal Size	23.8 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)*2160 (UHD), 185 PPI
Active Area	525.658mm * 295.704mm
Luminance	350 cd/m² (Typical)
Contrast Ratio	1300:1 (Typical)
Response Time	14ms (Typical, G to G)
Viewing Angle	89/89/89/89 (CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Color Support	1.07 Billion Colors, 100% NTSC
Light Source	WLED, 30,000 hours, Without Driver
Interface	eDP (4 Lanes), HBR2 (5.4G/lane), 30-pin Connector
Power Supply	10.0V (Typical)
Weight	1.61kg (Typical) / 1.69kg (Maximum)
Frame Rate	60Hz
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Important Note: This model entered mass production in Q3 2020 and is currently discontinued. For the latest production status and specifications, please contact LG Display or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
