BOE 24inch Stretched LCD Display Bar LCD Panel with 1920*360pixels Resolution 30Pin Connector and 300cd/m2 Brightness

Name: BOE 24inch Stretched LCD Display Bar LCD Panel with 1920*360pixels Resolution 30Pin Connector and 300cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: QV240FBM-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	QV240FBM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

LCM,TFT

Style:

Bar Lcd Display

Resolution:

1920*360pixels

Brightness:

300CCD/M2

Connector:

30Pin

Working Life:

30k Hours

Contrast Ratio:

1200:1

Packaging Details:

Industrial packing

Highlight:

24inch Stretched LCD Display

30Pin Stretched LCD Display

QV240FBM-N10 Stretched LCD Display

Product Description

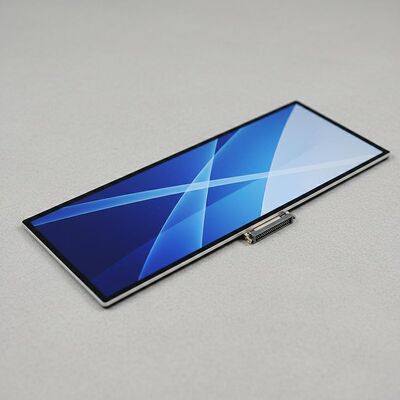

BOE 24-inch Stretched LCD Display QV240FBM-N10

Professional Bar-Type Digital Signage Panel

This 24.0-inch stretched LCD display from BOE Technology Group features a unique 1920*360 pixel resolution ideal for digital signage applications. The QV240FBM-N10 utilizes a-Si TFT-LCD technology with WLED backlighting and offers excellent visibility with anti-glare treatment.

Key Features

Bar-style stretched display format perfect for digital signage
High brightness 300 cd/m² with 1200:1 contrast ratio
Wide viewing angles: 89/89/89/89 (Left/Right/Up/Down)
Energy Star 6.0 compliant for energy efficiency
LVDS interface with 30-pin connector
Fast response time: 30ms (Typical)
16.7 million color support with 72% NTSC color gamut

Technical Specifications

Model Number	QV240FBM-N10
Diagonal Size	24.0 inches (1/3 cut of 27.0")
Resolution	1920(RGB) * 360 pixels (81 PPI)
Active Area	597.888mm (W) * 112.104mm (H)
Outline Dimensions	612.7mm (H) * 132.1mm (V) * 13.3mm (D)
Panel Type	a-Si TFT-LCD, LCM
Brightness	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Interface	LVDS (2 channel, 8-bit), 30-pin connector
Power Supply	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	1.35 kg (Typical)

Production Note: This model entered mass production in Q4 2023 and is currently in production. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized agents directly.
