LG 13.3 Inch Industrial LCD Display with 2560*1600 Pixels and 300cd/m2 Brightness TFT-LCD Panel

Name: LG 13.3 Inch Industrial LCD Display with 2560*1600 Pixels and 300cd/m2 Brightness TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LP133WQ1-SPB1
Price: 43.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LP133WQ1-SPB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2560*1600pixels

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

16.7m

Contrast Ratio:

1300 :1

Working Life:

15K Hours

Type:

Lcm

Size:

13.3inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

LP133WQ1-SPB1 Industrial Lcd

13.3nch Industrial Lcd

227PPI Industrial Lcd

Product Description

LG 13.3-inch Industrial LCD Display LP133WQ1-SPB1

The LP133WQ1-SPB1 is a high-performance 13.3-inch Oxide TFT-LCD display panel from LG Display, featuring WQXGA resolution (2560*1600 pixels) with 227 PPI density. This industrial-grade display offers exceptional image quality with 300 cd/m² brightness and 1300:1 contrast ratio, making it ideal for demanding applications.

Key Specifications

Display Model	LP133WQ1-SPB1 (LGD0649)
Diagonal Size	13.3 inches
Resolution	2560 * 1600 (WQXGA), 227 PPI
Panel Technology	Oxide TFT-LCD, IPS Technology
Brightness	300 cd/m² (Typical)
Contrast Ratio	1300:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	30ms (Typical)
Color Support	16.7 Million Colors, 99% sRGB

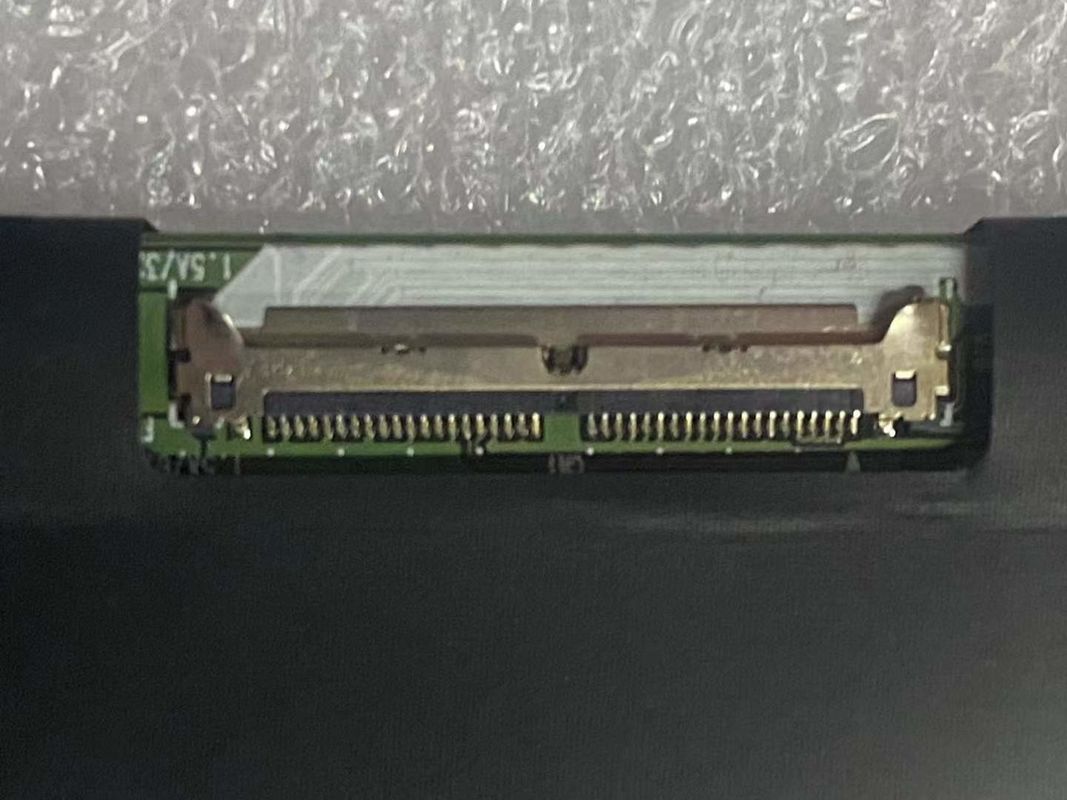

Interface	eDP 1.4, 40-pin connector
Backlight	WLED, 15K hours lifespan
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Advanced Features

High-resolution WQXGA display with 227 pixels per inch
IPS panel technology for wide viewing angles
Industrial-grade construction for reliable performance
WLED backlight system with integrated driver
eDP 1.4 interface with 40-pin connector
Anti-glare surface with hard coating (3H)
Supports sRGB color space for accurate color reproduction
Slim profile design with PCBA flat configuration

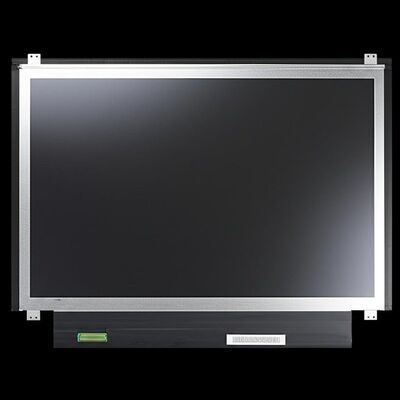

Product Image

Application Areas

This display is specifically designed for industrial applications and laptop integration, offering robust performance in demanding environments. The panel maintains excellent visibility and color accuracy across its wide operating temperature range.

Note: Mass production began in Q1 2020 and the model remains in production. For the latest production status and detailed specifications, please contact LG Display or their authorized agents directly. Information provided is for reference purposes only.
