BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels 220cd/m2 Brightness and 30PIN Interface

Name: BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels 220cd/m2 Brightness and 30PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: PT156FHM-N10
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	PT156FHM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1280pixels

Style:

30PIN IPS

Brightness:

220CD/M2

Color:

16.7m

Contrast Ratio:

500 :1

Working Life:

15K Hours

Type:

Lcm

Size:

15.6inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

PT156FHM-N10 Industrial Lcd

15.6nch Industrial Lcd

30PIN Industrial Lcd

Product Description

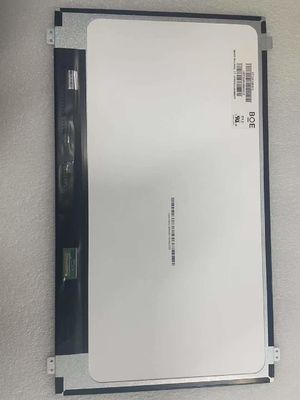

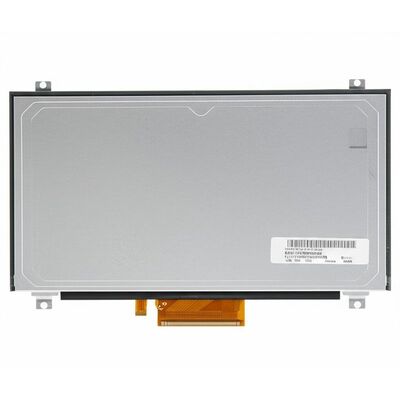

BOE 15.6-inch Industrial LCD Display Model PT156FHM-N10

PT156FHM-N10 (Product Code: BOE08C1) is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver and no touch screen. This industrial-grade display operates within a temperature range of 0-50°C and can withstand storage temperatures from -20°C to 60°C, with maximum vibration tolerance of 1.5G (14.7 m/s²).

Key Features

WLED Backlight, Built-in LED Driver, Reverse Interface, Matte Finish, eDP 1.2 Interface. Recommended for industrial applications requiring reliable performance in demanding environments.

Technical Specifications

Brand	BOE
Model Number	PT156FHM-N10
Panel Type	15.6" a-Si TFT-LCD, LCM
Resolution	1920*1080 (FHD), 141 PPI
Active Area	344.16*193.59 mm
Outline Dimensions	359.5206.925.4 mm
Luminance	220 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Response Time	12 ms (Typical)
Viewing Angle	45/45/20/40 (Left/Right/Up/Down)
Operating Mode	TN, Normally White, Transmissive
Color Support	262K colors, 47% NTSC
Light Source	WLED [9S4P], 15K hours, With LED Driver
Weight	400g (Maximum)

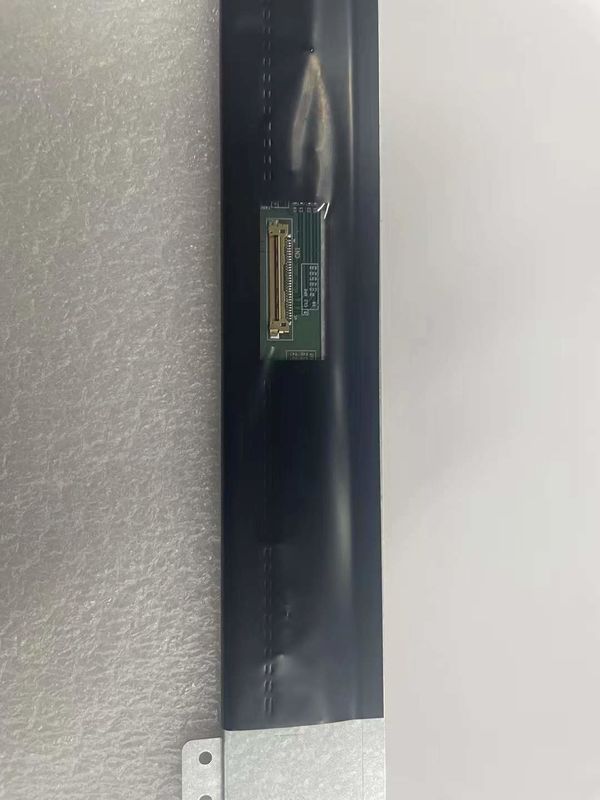

Interface	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin Connector
Power Supply	3.3V (Typical)
Frame Rate	60Hz

Production status: Mass production began Q3 2019 and continues currently. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
