Innolux G150XNE-L01 15" Car LCD Panel Industrial Screen Monitor with 1024*768 Resolution 500 cd/m² Brightness and 70k Hours Working Life

Name: Innolux G150XNE-L01 15" Car LCD Panel Industrial Screen Monitor with 1024*768 Resolution 500 cd/m² Brightness and 70k Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G150XNE-L01
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	G150XNE-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*768

Style:

20PIN IPS

Brightness:

500 CD/M2

Color:

16.7M

Contrast Ratio:

2500 :1

Working Life:

70k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

15” Car LCD Panel

G150XNE-L01 Car LCD Panel

1024*768 Car LCD Panel

Product Description

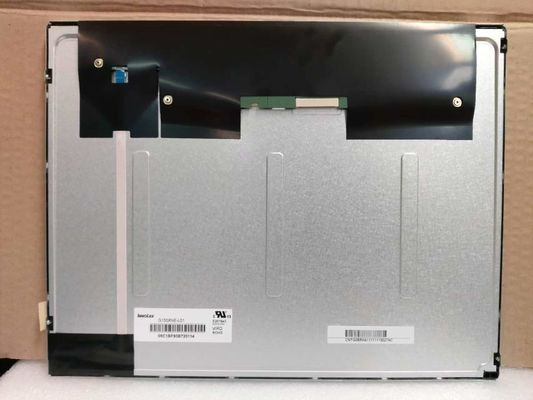

Innolux G150XNE-L01 15" Car LCD Panel

The Innolux G150XNE-L01 is a 15.0-inch industrial-grade TFT-LCD display panel designed for automotive and industrial applications. This high-performance monitor features a wide operating temperature range, extended lifespan, and robust construction suitable for demanding environments.

Key Features

15.0-inch diagonal a-Si TFT-LCD display
1024×768 XGA resolution with 85 PPI
Wide operating temperature: -30°C to 80°C
Extended backlight life: ≥70,000 hours
High brightness: 500 cd/m² typical
Superior contrast ratio: 2500:1 typical
Wide viewing angles: 88/88/88/88 (CR≥10)
Built-in LED driver and WLED backlight
LVDS interface with 20-pin connector
Anti-glare, hard coating (3H) treatment

Technical Specifications

Model Number	G150XNE-L01
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768 (XGA)
Active Area	304.128 × 228.096 mm
Outline Dimensions	326.5 × 253.5 × 9.6 mm
Luminance	500 cd/m² (Typical)
Contrast Ratio	2500:1 (Typical)
Viewing Angle	88/88/88/88 (Left/Right/Up/Down)
Response Time	13/5 ms (Typical Tr/Td)
Color Depth	262K/16.7M (72% NTSC)
Refresh Rate	60Hz (with 120Hz MEMC options)
Interface	LVDS (1 channel, 6/8-bit), 20-pin
Operating Voltage	3.3V (Typical)
Operating Temperature	-30°C to 80°C
Storage Temperature	-40°C to 85°C
Weight	0.97/1.00 kg (Typical/Maximum)

Application Areas

This display panel is specifically designed for industrial and automotive display applications where reliability, wide temperature operation, and extended lifespan are critical requirements.

Note: Production status information is for reference only. For the latest production availability and detailed specifications, please contact Innolux or their authorized distributors directly.
