AUO 5inch Car LCD Display with 480x234 Resolution 800 CD/M2 Brightness and 40 Pin IPS for Automotive Video Screen Monitor

Name: AUO 5inch Car LCD Display with 480x234 Resolution 800 CD/M2 Brightness and 40 Pin IPS for Automotive Video Screen Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: C050FTN01.2
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	C050FTN01.2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*234

Style:

40PIN IPS

Brightness:

800 CD/M2

Color:

16.7M

Contrast Ratio:

600 :1

Working Life:

10k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

5inch Car LCD Panel

C050FTN01.2 Car LCD Panel

AUO 5inch Car LCD Panel

Product Description

AUO 5-inch Car LCD Panel C050FTN01.2

Professional automotive display panel from AU Optronics featuring a 5-inch diagonal screen with 480×234 resolution, designed specifically for vehicle applications with wide temperature tolerance and vibration resistance.

Product Overview

The AUO C050FTN01.2 is a 5.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. Engineered for automotive environments, it operates in temperatures from -30°C to 85°C and withstands vibration levels up to 2.9G. This model features high brightness and is optimized for automotive display applications.

Key Features

Wide operating temperature range (-30°C to 85°C)
High vibration resistance (2.9G / 28.4 m/s²)
High brightness 800 cd/m² display
WLED backlight with 10,000-hour lifespan
Automotive-grade construction and reliability
60Hz refresh rate with MEMC circuit support

Technical Specifications

Brand	AU Optronics (AUO)
Model Number	C050FTN01.2
Display Size	5.0 inches diagonal
Resolution	480(RGB)×234 pixels (106 PPI)
Panel Type	a-Si TFT-LCD, LCM
Brightness	800 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	60/60/40/60 (Left/Right/Up/Down)
Response Time	16ms (Typical, Tr+Td)
Display Colors	16.7 million (65% NTSC)
Signal Interface	Parallel RGB (1 channel, 8-bit), 40-pin FPC
Input Voltage	3.3V (Typical)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C
Touch Screen	Without touch capability
Application	Automotive Display Systems

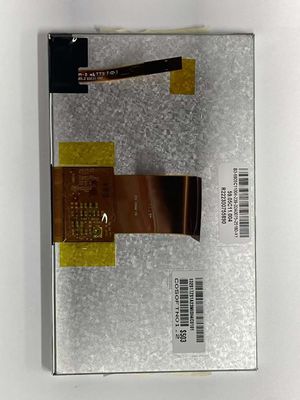

Product Images

Important Note: This model entered mass production in Q4 2013 and is currently discontinued. For current production status and latest specifications, please contact AU Optronics or their authorized distributors directly.
