| Brand Name: | LG |
| Model Number: | LD230EKS-FPN1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
LG Stretched bar LCD Display Digital Signage23.1inch LD230EKS-FPN1 1920*158Pixels

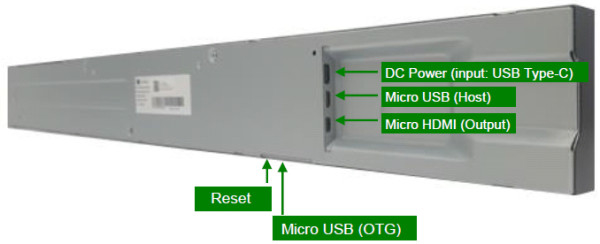

The LD230EKS-FPN1 is a 23.1 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, touchscreen In-Cell Touch. It features an operating temperature range of 0 ~ 45°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, With Touch, Hight Brightness, WLED Backlight, Life ≥ 50K hours, Bar Display, Matte , Android 7.1.2, Bluetooth, Micro USB 2.0, Signal Output:Micro HDMI, Input Power Frequency:AC100-240V@50/60Hz, Output V/C:12V/3A. Based on its features,einklcd recommend that this model be applied to Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc. According to the information stored in einklcd this model mass production on Q4, 2020 and last shippment on Q4, 2024, Now this model is discontinued. We inputted this model's specification on Sep 2 2020 for the first time, and the latest update on Nov 29 2024. If you want to embed LD230EKS-FPN1 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail. The LD230EKS-FPN1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:LG
Display Model : P/NLD230EKS-FPN1
Diagonal Size 23.1" (Native bar)
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920×158(RGB) 83PPI Pixel
Format RGB Horizontal Stripe
Active Area 585.56(W)×48.18(H) mm
Bezel Opening-
Outline Dim.593.8(H)×63.4(V) mm
Treatment Antiglare, Hard coating (4H)
Luminance 700 cd/m² (Typ.)
Contrast Ratio-
View Direction:
Symmetry Response Time-
Viewing Angle89/89/89/89 (Min.)(CR≥10) Left / Right / Up / Down
Operating Mode: IPS, Normally Black, Transmissive
Support Color16.7M Light Source WLED , 50K hours
Weight: 820g (Typ.)
Designed For : Digital Signage Outdoor High Brightness Stretched Bar LCD
Frame Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel : In-Cell Touch
Environment Operating Temperature: 0 ~ 45 °C ;
Storage Temperature: -20 ~ 60 °C
|
|
