LG 23.1 Inch Stretched LCD Display with 1920×158 Resolution and 700 cd/m² Brightness for Digital Signage

Name: LG 23.1 Inch Stretched LCD Display with 1920×158 Resolution and 700 cd/m² Brightness for Digital Signage
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD230EKS-FPN1
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LD230EKS-FPN1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07b Colors

Model:

LCM

Style:

Wide Screen High Resolution 1920*158

Brightness:

700cd

Connector:

N/A

Contrast Ratio:

N/A

Touch Panel:

In-cell Touch

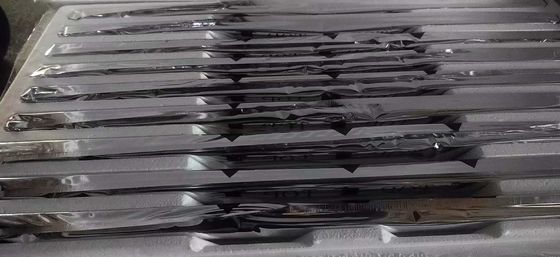

Packaging Details:

Industrial packing

Highlight:

Stretched bar LCD Display Digital Signage

23.1inch Stretched bar LCD Display

LD230EKS-FPN1 Stretched LCD Display

Product Description

LG Stretched Bar LCD Display Digital Signage 23.1-inch LD230EKS-FPN1

The LD230EKS-FPN1 is a 23.1-inch diagonal a-Si TFT-LCD display panel from LG Display Co., Ltd., featuring an integral WLED backlight system and In-Cell Touch technology. Designed for demanding digital signage applications, this stretched bar display delivers high brightness and reliable performance in various environmental conditions.

Key Features

23.1-inch diagonal bar display with 1920*158 resolution
High brightness: 700 cd/m² (Typical)
In-Cell Touch technology
IPS technology with wide viewing angles
WLED backlight with 50,000-hour lifespan

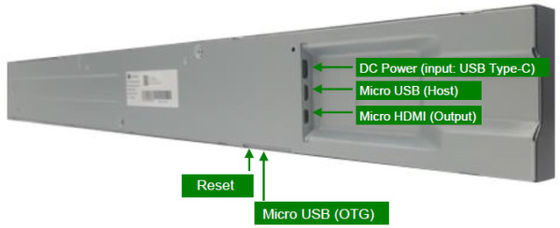

Android 7.1.2, Bluetooth, and Micro USB 2.0 connectivity
Micro HDMI signal output
Frame rate options: 60Hz, 120Hz, and 240Hz with embedded MEMC

Technical Specifications

Display Model	LD230EKS-FPN1
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920*158 RGB (83 PPI)
Active Area	585.56(W) * 48.18(H) mm
Outline Dimensions	593.8(H) * 63.4(V) mm
Luminance	700 cd/m² (Typical)
Viewing Angle	89/89/89/89 (CR≥10) Left/Right/Up/Down
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Weight	820g (Typical)
Surface Treatment	Antiglare, Hard coating (4H)

Recommended Applications

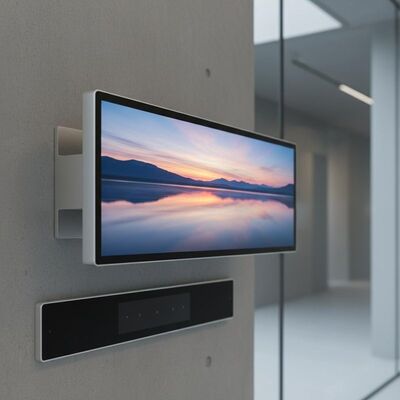

This display model is ideally suited for digital signage, outdoor high-brightness applications, and stretched bar LCD implementations where space-constrained, high-visibility displays are required.

Important Notice: This model entered mass production in Q4 2020 with last shipment in Q4 2024 and is now discontinued. For integration into future products, we strongly recommend contacting LG Display or their authorized agents for the latest production status and specification details. Information provided here is for reference only and should not be used as the sole basis for decision-making.
