AUO 10.4 Inch Industrial LCD Display TFT-LCD Panel with 800x600 Resolution and 350cd/m2 Brightness

Name: AUO 10.4 Inch Industrial LCD Display TFT-LCD Panel with 800x600 Resolution and 350cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: A104SN03 V1
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	A104SN03 V1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

60PIN IPS

Brightness:

350CD/M2

Color:

16.7m

Contrast Ratio:

500 :1

Working Life:

30K Hours

Type:

Lcm

Size:

10.4inch

Lamp Type:

LCM

Voltage:

3.3V/5.0V/7V

Packaging Details:

Industrial packing

Highlight:

10.4Inch Industrial Lcd

350cd/M2 Industrial Lcd

A104SN03 V1 Industrial Lcd

Product Description

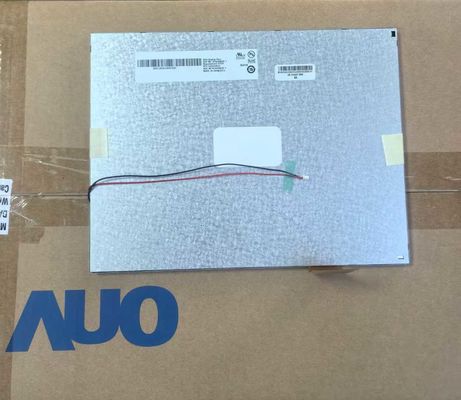

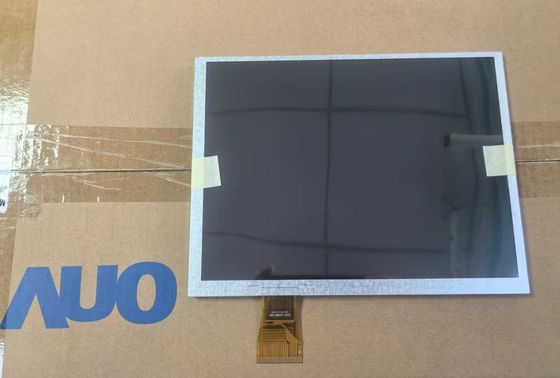

AUO 10.4-Inch Industrial LCD Display A104SN03 V1

The A104SN03 V1 is a 10.4-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integral WLED backlight system. This industrial-grade display is designed for applications including digital photo frames, portable DVD players, and other industrial equipment.

Key Specifications

Brand	AUO
Model Number	A104SN03 V1
Diagonal Size	10.4 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800×600 (SVGA), 96 PPI
Active Area	211.2×158.4 mm
Luminance	350 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	75/75/50/60 (Left/Right/Up/Down)
Response Time	30 ms (Typical)
Interface	TTL (1 ch, 6/8-bit) + SPI, 60 pins FPC
Power Supply	3.3/11/15/-7V (VCC/AVDD/VGH/VGL)

Technical Features

WLED backlight system with 10,000 hours lifespan
Matte surface with antiglare, hard coating (3H)
Supports 262K/16.7M colors with 50% NTSC
TN technology with normally white, transmissive mode
Frame rate: 60Hz standard, with embedded MEMC circuit options
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Weight: 400±20g

Application Areas

This display panel is specifically designed for industrial applications, digital photo frames, and portable DVD players, offering reliable performance in demanding environments.

Note: Production status information is for reference only. For integration into your products, contact AUO or their authorized agents for the latest production and specification details.
