| Brand Name: | BOE |
| Model Number: | AV162YUM-N10 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

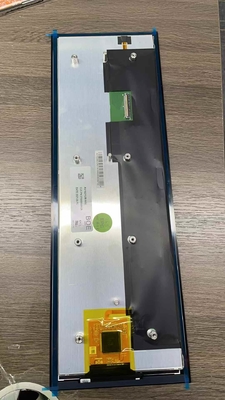

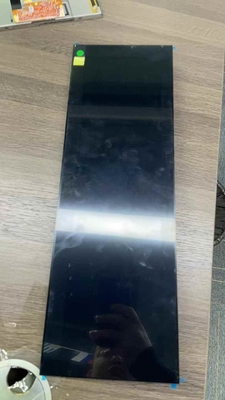

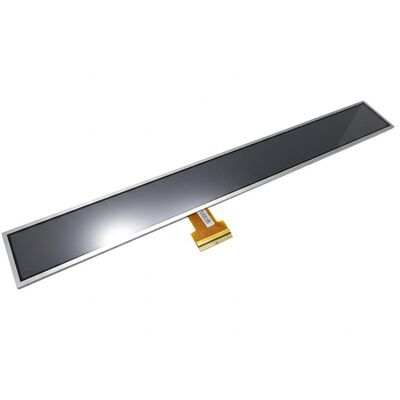

Outdoor brightness lcd panel BOE 16.2inch Stretched LCD Display, AV162YUM-N10 60 Pin Monitor 2608*720pixels
BOE Technology Group Co., Ltd. (hereafter called BOE) AV162YUM-N10 (Alias: COG-FAUT002B-01) is a 16.2 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 10.0G (98 m/s²). It's general features are summarized by einklcd in the following: sRGB, Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 50K hours, Bar Display . Based on its features, einklcd recommend that this model be applied to Rugged Industry, Outdoor High Brightness, Automotive Display etc.Built-in HX8240*4 + HX8695*1 driver IC. According to the information stored in einklcd this model mass production on Q2, 2019, Now this model is in production. We inputted this model's specification on Jul 5 2024 for the first time, and the latest update on Aug 6 2024. If you want to embed AV162YUM-N10 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The AV162YUM-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: BOE
Model P/N: AV162YUM-N10
Diagonal Size: 16.2"Panel
Type: a-Si TFT-LCD, LCM
Resolution: 2608(RGB)×720 167PPI Pixel
Format RGB Vertical Stripe
Active Area: 396.677(W)×109.512(H) mm
Bezel Opening 400.5(W)×113.3(H) mm
Outline (mm) 413×131.5×23.15 (H×V×D)Treatment-
Luminance 800 cd/m² (Typ.)
Contrast Ratio1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Response 30 (Max.)(Tr+Td) ms
Good View at Symmetry
Work Mode: ADS, Normally Black, Transmissive
Color Depth16.7M 89% DCI-P3
Backlight: 10S5P WLED , 50K hours , No Driver
Mass-Used for Rugged Industry, Outdoor High Brightness Automotive Display
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type LVDS (2 ch, 8-bit) , Connector 60 pins
Voltage Supply 3.3/5.0/18/-12V (Typ.)(VDD3/VDD5/VGH/VGL)
Max. RatingsStorage Temp.: -40 ~ 90 °C
Operating Temp.: -30 ~ 85 °C ;
Vibration Level: 10.0G (98 m/s²)
|
|
